Real-Time Location Tracking Dashboard Kit with ESP32 + LED
Track Assets in Real-Time with This ESP32 GPS Node-RED Dashboard Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This advanced kit lets you build a complete location tracking device that reports GPS coordinates to a live dashboard via MQTT. Whether you are tracking a vehicle, a delivery drone, or just monitoring your own movements, the system plots your path on a Node-RED map interface in real time. It is a production-grade IoT project that teaches professional integration of hardware, firmware, and cloud-based visualization.
What You'll Build
You will assemble a battery-powered GPS tracker with an ESP32 microcontroller. Once powered, it connects to Wi-Fi, acquires a GPS fix, and transmits latitude, longitude, and timestamp over MQTT. A separate Node-RED flow (running on your laptop or a Raspberry Pi) subscribes to the topic, parses the data, and updates a live map dashboard—perfect for demonstration in project reviews or hackathons.
What You'll Learn
- Integrating GPS modules (NEO-6M) with ESP32 using UART communication
- Configuring MQTT protocol for real-time data telemetry
- Designing a Node-RED flow to consume sensor data and produce interactive map dashboards
- Power management with LiPo battery, buck converter, and RTC for timestamped logging

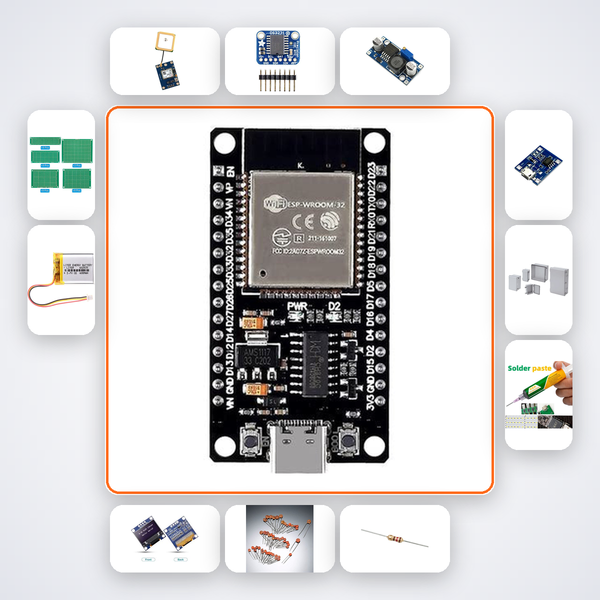

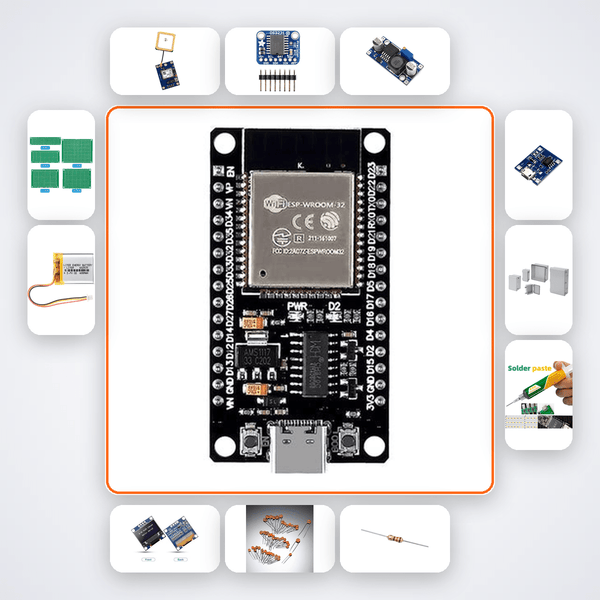

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | x1 |
| NEO-6M GPS | x1 |
| DS3231 RTC | x1 |
| LM2596 Buck Converter | x1 |
| 0.96in OLED | x1 |
| 100nF Caps | x10 |
| 4.7kΩ Resistors | x5 |
| PCB Prototype Board | x2 |
| 3.7V LiPo 2000mAh | x1 |
| TP4056 Module | x1 |
| Enclosure Box | x1 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Designed for B.Tech ECE/EEE students working on final-year IoT projects, Smart India Hackathon participants needing a reliable tracking system, and ATL Tinkering Lab mentors demonstrating advanced connectivity. If you have already built basic Arduino projects and want to move into professional-grade IoT data pipelines, this kit bridges the gap.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Our AI companion walks you through each step—wiring, firmware, Node-RED setup—and if you still need help, reach us via WhatsApp for direct troubleshooting.
Can I view the dashboard on my phone?
Yes, the Node-RED dashboard is accessible via any browser on the same Wi-Fi network, including your phone. You can monitor location live without extra software.
The GPS isn’t getting a fix indoors. What should I do?
NEO-6M requires a clear sky view. Move to an open area; initial fix may take a few minutes. For indoor testing, consider an active external antenna (not included) or test near a window.
Do I need a separate cloud subscription for the dashboard?
No. Node-RED runs locally on your laptop, so no cloud fees. You can optionally deploy it to a Raspberry Pi for always-on access within your network.
NEO-6M GPS on ESP32 publishes coordinates over MQTT. Node-RED parses and plots live map on dashboard.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
