Data Centre Condensation Monitor Kit with Arduino Uno + HX711 Load Cell

SKU: CDN-KIT-2902-SLD Brand: Compoden Category: Electronics > Weather & Environment > Project Kits
Rs. 1,740.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Data Centre Condensation Monitor Kit with Arduino Uno + HX711 Load Cell — an advanced-level kit.

Data Center Environmental Monitor with Water Weight Tracking

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: Environmental sensor integration and data logging

You’ll assemble a professional-grade monitoring station that continuously tracks temperature, humidity, and the weight of water collected on a mesh — a critical metric for detecting condensation risks inside server racks. This project mimics a real-world data centre moisture monitoring setup, making it perfect for final-year engineering projects, smart infrastructure hackathons, or anyone prototyping low-cost environmental safeguards for IT equipment.

What You'll Build

A compact logging device that displays real-time DHT22 humidity and BMP280 temperature on an OLED screen, while an HX711 load cell measures the weight of water accumulated on a mesh over time. All data is timestamped with the DS3231 RTC and saved to a microSD card for later correlation analysis. You’ll gain hands-on experience in building a multi-sensor system that directly addresses the risk of condensation in air-conditioned server environments.

What You'll Learn

  • Calibrate and read a high-precision load cell with HX711 amplifier to detect micro-weight changes from water droplets.
  • Interface DHT22 and BMP280 sensors over I2C and OneWire to capture accurate temperature, humidity, and barometric pressure.
  • Log timestamped sensor data to a microSD card using a DS3231 RTC for long-term trend analysis and correlation.
  • Design a robust prototype on PCB board with decoupling capacitors to ensure stable sensor readings in noisy electrical environments.

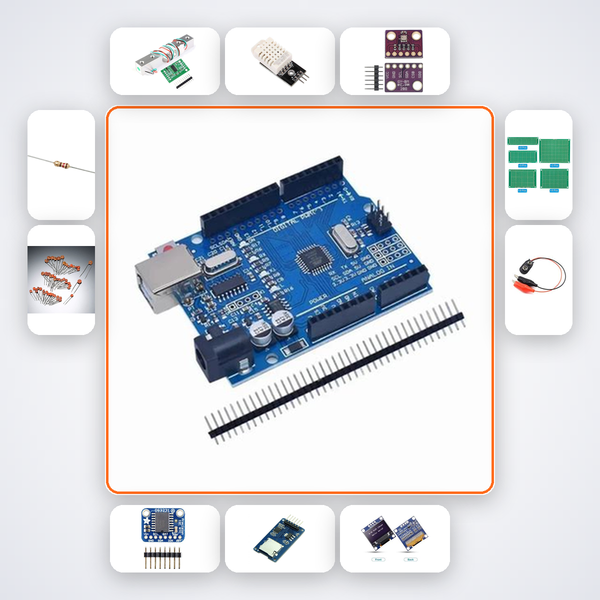

Kit Contents

Component Quantity
Arduino Uno R3 1
HX711 + 1kg Load Cell 1
DHT22 1
BMP280 1
DS3231 RTC 1
MicroSD Module 1
0.96in OLED 1
4.7kΩ Resistors 5
100nF Caps 10
PCB Prototype Board 2
M-M Wires 25
9V Battery Snap 1

Who This Kit Is For

Ideal for B.Tech ECE and EEE students building final-year projects that demand environmental monitoring and data logging. Perfect for Smart India Hackathon participants tackling smart infrastructure challenges, and for data center operators seeking a low-cost condensation detection prototype. CBSE students with strong electronics interest can undertake this under mentor guidance, gaining exposure to advanced sensor integration.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Your kit includes a QR code linking to an AI companion trained on this exact project, with step-by-step guidance. You can also reach us via WhatsApp for personalized help.

How does the load cell mesh work for detecting moisture?

The mesh is placed under a server rack's cold-air intake; the load cell measures the weight of any water droplets that condense on the mesh. The increase in weight over time directly correlates with humidity levels, allowing you to detect dangerous condensation before it damages equipment.

Can this kit log data for multiple days?

Yes, the DS3231 RTC provides accurate timestamps, and the microSD module can store months of data. You can set logging intervals in the code to suit your analysis needs.

Is this suitable for a real data center deployment?

While this kit is designed for educational and prototyping purposes, its sensors are industrial-grade and can be tested in real environments. For permanent installation, you would need to add proper enclosures and power supply management, which this PCB-prototype design supports you in scaling up.

Data Centre — Load cell measures mesh water collection weight over time correlated with humidity and temperature from DHT22 and BMP280.

What's in this kit

Choose your assembly option:

  • Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
  • Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
