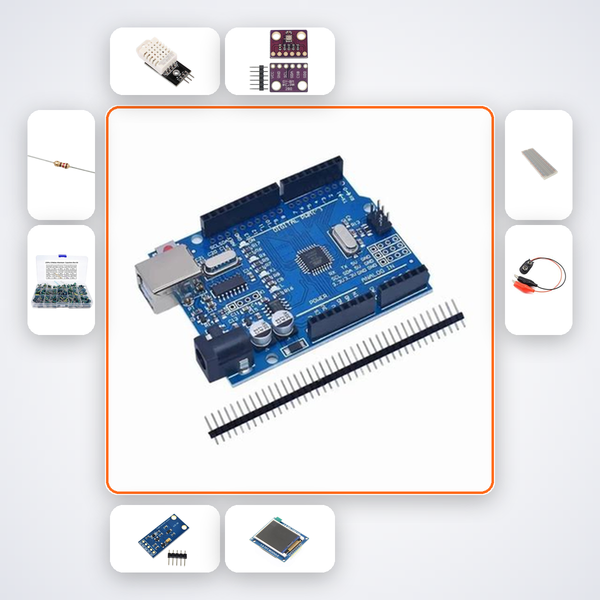

Build a Multi-Sensor Dashboard on Arduino Uno: DHT22, BMP280, BH1750 & TFT Display

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Imagine flipping a switch and watching temperature, humidity, atmospheric pressure, and light levels update in real time as colorful gauges on a tiny color screen. With this kit, you’ll build exactly that — a compact environmental dashboard that teaches how microcontrollers read sensors and display graphics. It’s the perfect first project for curious minds who want to see invisible data become visible.

What You'll Build

You’ll assemble and program a complete monitoring station that shows four different sensor readings simultaneously on a 1.8-inch TFT display. The dashboard uses clear needle gauges for temperature, humidity, and pressure, plus a light-level indicator bar. Everything runs on an Arduino Uno and is powered by a single 9V battery so you can place it anywhere.

What You'll Learn

• How to connect and read data from the DHT22 digital temperature-humidity sensor.
• Using the BMP280 barometric pressure sensor and converting raw values into meaningful units.
• Interfacing the BH1750 ambient light sensor over I2C and mapping lux readings to a visual gauge.
• Drawing dynamic shapes, text, and animated needle pointers on a TFT display using the ST7735 library.

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is meant for young explorers aged 5–15 who are fascinated by gadgets. It integrates well with ATL Tinkering Lab challenges, CBSE secondary school science projects, and early-stage STEM learning at home. No prior coding experience is needed — the AI companion will guide even a first-time builder.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
