Build a Variable Impedance Actuator for Safe Human-Robot Interaction with Arduino Mega

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

This kit lets you construct a dual-motor variable impedance actuator that physically emulates adjustable stiffness and damping — a foundational capability for robots sharing workspace with humans. Instead of rigid, dangerous movements, your finished joint will sense interaction forces and dynamically soften or stiffen its response, much like collaborative robots in factories and research labs.

What You'll Build

You will assemble a compact, Arduino-controlled actuator with two co-located DC motors driving a common output through an adjustable spring mechanism. The system uses force-sensitive resistors and high-resolution encoders to measure contact forces and angular position, allowing real-time impedance modulation. When you're done, you'll be able to hand-guide the joint and watch it respond compliantly on the OLED display, demonstrating the principles behind safe human-robot interaction.

What You'll Learn

• Design and tune a variable impedance controller using torque feedback from dual motors
• Interface AS5600 magnetic encoders for 12-bit angular position sensing
• Read force data from FSR 402 sensors via INA219 current monitors for precise force estimation
• Calibrate the adjustable stiffness spring to achieve a range of mechanical compliance profiles

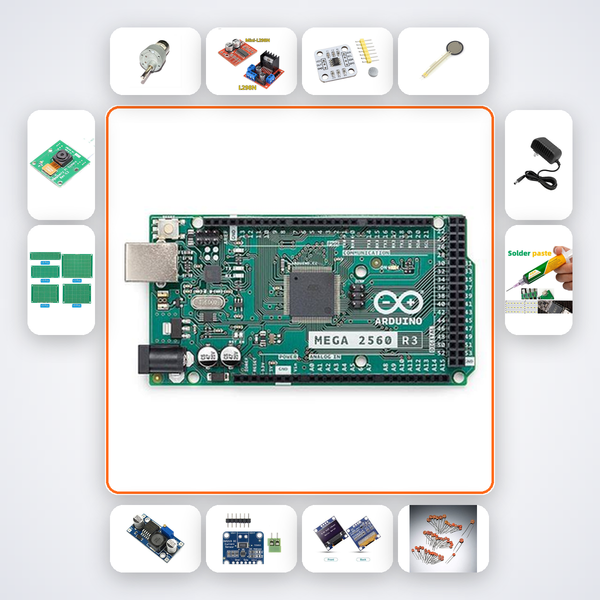

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is built for engineering students and professionals tackling advanced robotics problems. It’s ideal for B.Tech ECE/EEE final-year projects, Smart India Hackathon participants working on collaborative robots, and researchers at IIT/NIT/VIT/BITS labs exploring compliant actuation. If you’ve outgrown simple line-follower robots and need to demonstrate safe physical human-robot interaction, this is your platform.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
