Water Tank Level Monitor Kit with Arduino Mega
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Water Tank Level Monitor Kit with Arduino Mega — an advanced-level kit.
Arduino Mega Water Tank Level Monitor Kit – Ultrasonic Cavitation Sensing
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Build a high-precision water tank level monitor that uses ultrasonic cavitation physics instead of simple echo ranging. This advanced kit lets you drive a 40kHz transducer with an AD9833 signal generator, then sample the impedance shift via an ADS1115 ADC to detect cavitation onset—giving you a robust, non-contact measurement of water depth.
What You'll Build
You’ll assemble a complete ultrasonic cavitation sensing system on a PCB prototype board. The circuit excites an ultrasonic transducer to create a cavitation field in the tank; when the water level changes, the transducer’s impedance shifts at cavitation threshold, which the ADS1115 reads and logs to a microSD card with an RTC timestamp. The 1.8-inch TFT displays real-time level and status. The result is a logger-ready tank monitor usable in rural water storage projects, agricultural automation, or B.Tech capstone demonstrations.
What You'll Learn
- How to configure an AD9833 DDS chip to generate a clean 40kHz sine wave for ultrasonic drive.
- Analog front-end design with LM358 op-amps to amplify and filter the transducer’s response.
- Reading differential ADC values from an ADS1115 to detect subtle impedance changes at cavitation onset.
- Soldering and assembling a mixed-signal circuit on a prototype board with proper grounding and decoupling.

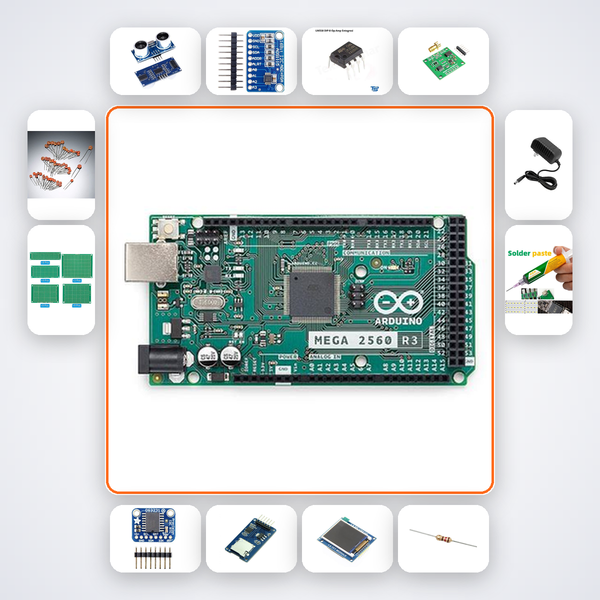

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | x1 |
| USB A-B cable | x1 |
| HC-SR04 | x1 |
| Float switch | x1 |
| 20x4 I2C LCD | x1 |
| 5V relay module | x1 |
| Active buzzer | x1 |
| Breadboard (830 + 400) | x1 |
| Jumper wires (20) | x1 |
Who This Kit Is For
This kit is designed for final-year B.Tech ECE and EEE students working on instrumentation projects or Smart India Hackathon prototypes. It’s also an excellent choice for research scholars investigating non-contact sensing methods, and for serious hobbyists who want to move beyond simple Arduino tutorials into mixed-signal design.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion via the QR code on your kit box for step-by-step troubleshooting, or message us on WhatsApp for human support.
Do I need an oscilloscope to debug this kit?
The included AI companion provides annotated waveform screenshots and test point voltages, but an oscilloscope is helpful if you want to observe the transducer drive signal directly.
Can this kit be adapted for other tank sizes?
Yes, the cavitation threshold detection is independent of tank shape; the build guide includes calibration steps for your specific tank dimensions.
Is the code open-source?
All Arduino code is provided open-source on our GitHub, with comments for customizing data logging intervals and TFT display layouts.
Tank Monitoring — High-frequency piezo transducer drives ultrasonic bath. ADS1115 monitors cavitation onset by impedance shift.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
