WiFi 4 vs WiFi 6 Range Test Kit with ESP32 + LED
WiFi 4 vs WiFi 6 Range Test Kit – Measure Real Signal Strength with ESP32 & ESP32-C6
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Walk away from your router and watch signal strength drop in real time — compare how WiFi 4 (ESP32) and WiFi 6 (ESP32-C6) perform at every step. This kit lets you build a dual-board range tester that pings your gateway at increasing distances, plots RSSI and packet loss on two OLED displays, and gives you hard data on next-gen WiFi coverage.
What You'll Build
You'll assemble a portable, handheld test rig with two independent ESP boards, each connected to its own OLED screen. One ESP32 (WiFi 4) and one ESP32-C6 (WiFi 6) continuously ping your router. As you move through your home, hostel, or campus, the displays show live RSSI in dBm and the percentage of lost packets. Walk 5 metres, 15 metres, even 30 metres, and instantly see which standard holds a stable link longer. The breadboard layout keeps everything accessible for tinkering, and you can power the whole setup from a USB power bank for true mobility.
What You'll Learn
- Measuring WiFi RSSI and packet loss using Arduino code on ESP32 and ESP32-C6
- Comparing OFDM (WiFi 4) and OFDMA (WiFi 6) link robustness in real environments
- Displaying live sensor data on 0.96-inch OLED screens via I2C
- Interpreting router gateway pings and network layer performance metrics

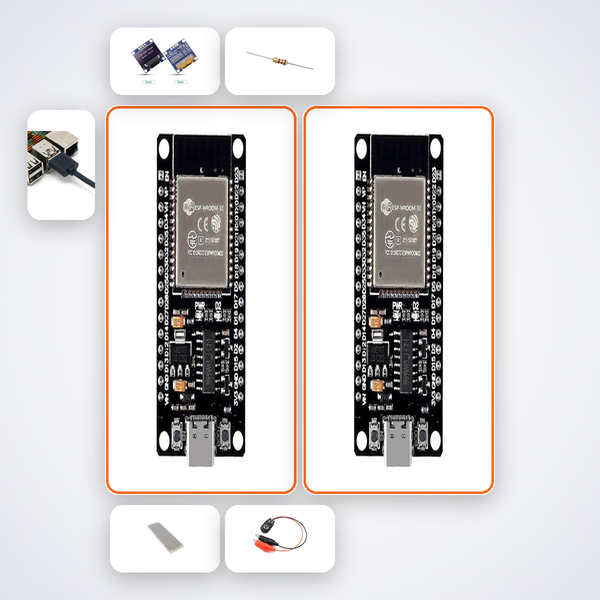

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| ESP32-C6 Dev Board | 1 |
| 0.96in OLED | 2 |
| 4.7kΩ Resistors | 5 |
| 400-pt Breadboard | 2 |
| M-M Wires | 20 |
| Micro USB Cable | 2 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
If you're a CBSE Class 12 student needing a unique investigatory project that demonstrates real-world wireless principles, or a B.Tech ECE sophomore tackling a communication networks lab, this kit delivers data you can graph and defend. It's also ideal for Smart India Hackathon teams prototyping IoT range tests and ATL Tinkering Lab mentors who want to teach signal propagation concepts hands-on. IIT, NIT, VIT, and BITS students have used this exact setup to explore next-gen WiFi behavior.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to chat with the AI companion trained on this project; it will guide you through wiring and code debugging. If you need a human, WhatsApp support is included.
Do I need two separate routers to test WiFi 4 and WiFi 6?
No. A single dual-band router that supports both standards works perfectly. The ESP32 connects to the 2.4 GHz band (WiFi 4), while the ESP32-C6 can use the router’s 2.4 GHz or 5 GHz band in WiFi 6 mode, depending on your router’s capabilities.
Can I log data to a computer for graphing?
Yes. The AI companion will show you how to modify the code to send CSV data over serial. You can then open it in Excel, Google Sheets, or Python for professional plots.
What if my router doesn't support WiFi 6?
The ESP32-C6 can still connect to WiFi 4/5 routers, so you can compare both modules on the same network. You'll see the C6’s better receiver performance even without a WiFi 6 router, making it a great baseline experiment.
ESP32 and ESP32-C6 ping gateway from increasing distances. Plot RSSI and packet loss vs range on TFT.
What's in this kit
- ESP32 Dev Board
- ESP32-C6 Dev Board
- 0.96in OLED x2
- 4.7kΩ Resistors x5
- 400-pt Breadboard x2
- M-M Wires x20
- Micro USB Cable x2
