Zigbee Sensor Node with CC2530 Variant 3
Build Your Own Zigbee Environmental Sensor Node for Home Assistant – CC2530 & Arduino Kit
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine deploying a weatherproof, battery-powered sensor node that streams real-time temperature, humidity, and barometric pressure directly into your Home Assistant dashboard – all over a self-healing Zigbee mesh network. This kit gives you a complete, pre-validated hardware stack to build exactly that: a CC2530-based Zigbee sensor node that pairs with the popular Zigbee2MQTT coordinator, turning raw sensor data into actionable smart home automations without any proprietary cloud lock-in.
What You'll Build
You’ll assemble a standalone sensor node on a prototyping board, connecting an Arduino Nano to the CC2530 Zigbee module, DHT22 temperature/humidity sensor, and BMP280 barometric pressure sensor. Once programmed, the node reads environmental data at regular intervals and pushes it wirelessly to your Zigbee2MQTT network. The rugged waterproof enclosure makes it ready for garden, balcony, or terrace deployment, while the LiPo battery and charging module let it run untethered for days.
What You'll Learn
- Program CC2530 modules for Zigbee communication using proven open-source libraries
- Interface I2C sensors (BMP280) and one-wire DHT22 with Arduino Nano while managing 3.3V logic levels
- Set up Zigbee2MQTT and Home Assistant for automatic device discovery and real-time sensor dashboards
- Optimise battery life for a wireless IoT node through smart sleep cycles and power regulation

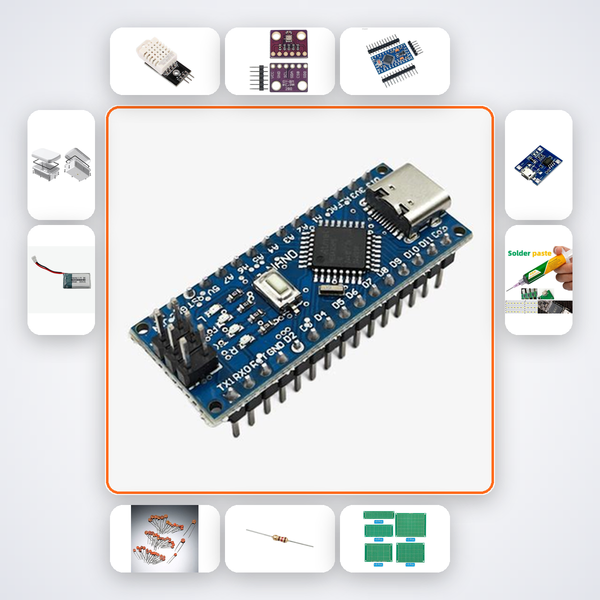

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| CC2530 Zigbee Module | 1 |
| DHT22 | 1 |
| BMP280 | 1 |
| LM1117 3.3V Reg | 1 |
| 100nF Caps | 10 |
| 4.7kΩ Resistors | 5 |
| PCB Prototype Board | 2 |
| Waterproof Enclosure | 1 |
| 3.7V LiPo 1000mAh | 1 |
| TP4056 Module | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for B.Tech and M.Tech students in ECE, EEE, or IoT programmes at IITs, NITs, VIT, and BITS who need a proven wireless sensor project for coursework or hackathons like Smart India Hackathon. Also suits seasoned home automation enthusiasts across India who want a custom Zigbee sensor network without vendor lock-in, and professionals prototyping IoT products that require long-range, low-power mesh connectivity.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to launch the AI companion, which can answer wiring, coding, and debugging questions exactly for this kit. For human help, WhatsApp us and a maker from our team will respond within hours.
Do I need a separate Zigbee coordinator like CC2531?
Yes, this kit builds the sensor node only. You will need a Zigbee coordinator (e.g., CC2531 flashed with Zigbee2MQTT firmware) connected to a Raspberry Pi or computer running Home Assistant. Our AI companion guides you through that setup as well.
Can I deploy this sensor outdoors during the Indian monsoon?
Absolutely. The included waterproof enclosure has an IP65 rating and, with a dab of silicone sealant on cable entries, will withstand heavy rain and dust. The sensors themselves are pre-calibrated for outdoor temperature and humidity ranges.
How can I extend the node to monitor soil moisture?
You can connect an analog capacitive soil moisture sensor to one of the Arduino’s remaining ADC pins. Our build companion includes code snippets and wiring diagrams for adding extra sensors while maintaining deep sleep and battery efficiency.
CC2530 Zigbee module on Arduino publishes sensor data to Zigbee2MQTT coordinator. Integrates with Home Assistant.
What's in this kit
- Arduino Nano
- CC2530 Zigbee Module
- DHT22
- BMP280
- LM1117 3.3V Reg
- 100nF Caps x10
- 4.7kΩ Resistors x5
- PCB Prototype Board x2
- Waterproof Enclosure
- 3.7V LiPo 1000mAh
- TP4056 Module
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
