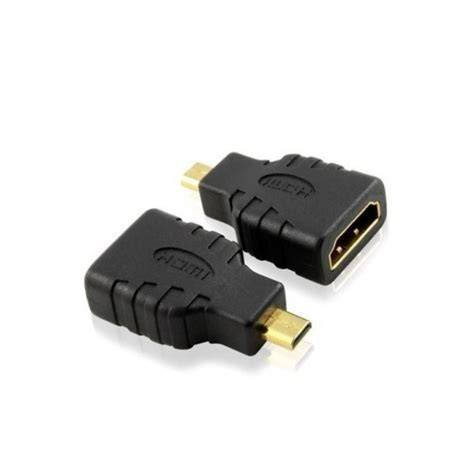

Micro HDMI Male to HDMI Female Adaptor for Raspberry Pi 4
Micro HDMI Male to HDMI Female Adaptor for Raspberry Pi 4
The Micro HDMI Male to HDMI Female Adaptor bridges the gap between your Raspberry Pi 4’s micro HDMI output and standard HDMI cables. It delivers a high‑bandwidth connection to monitors, TVs, and projectors with full support for 4K resolution at 60 Hz, making it the easiest way to unlock dual‑display projects or single‑screen setups.
Key Specifications
| Specification | Value |
|---|---|
| Connector Type A | Micro HDMI Male (Type D) |
| Connector Type B | HDMI Female (Type A) |
| Cable Length | 15 cm |
| HDMI Version | 2.0 |
| Maximum Resolution | 4K @ 60 Hz |
| Color | Black |
What You Can Build With This
- Dual‑screen productivity workstation with two Raspberry Pi 4 outputs
- Portable retro gaming console using a compact HDMI‑enabled screen
- Digital signage or information kiosk driven by a Raspberry Pi
- Home media centre for streaming 4K content via Kodi or Plex
Compatibility
Designed for all Raspberry Pi 4 variants (1 GB, 2 GB, 4 GB, 8 GB) that feature micro HDMI ports. It also works with any device that outputs video through a micro HDMI connector, such as certain action cameras and mini PCs. The adapter accepts standard HDMI cables and passes through EDID and HDCP signals required by consumer displays.
Wiring Notes
This is a passive adapter; no external power or configuration is needed. Plug the micro HDMI male end directly into the Raspberry Pi 4’s port, then connect a regular HDMI cable from the female end to your display. Both ports can be used simultaneously with two adapters for dual‑monitor setups.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with all Raspberry Pi 4 models?
Yes. The adapter works with the 1 GB, 2 GB, 4 GB, and 8 GB versions of the Raspberry Pi 4, all of which use the same micro HDMI ports.
Does this adapter support 4K resolution?
Absolutely. The adapter supports up to 4K resolution at 60 Hz when used with a compatible display and the Raspberry Pi 4’s HDMI 2.0 output.
Can I use this adapter in reverse to plug a micro HDMI source into a standard HDMI port?
No. This adapter converts a micro HDMI source (like the Pi 4) to a standard HDMI display connection. It is not bi‑directional and will not work if you try to connect a micro HDMI cable to an HDMI source.
