NeoPixel POV Globe Kit - 360� Animated Display with Arduino Nano
NeoPixel POV Globe Kit - 360� Animated Display with Arduino Nano
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Imagine a spinning globe, not of plastic but of light, floating in mid-air and cycling through animated world maps, latitude lines, and glowing data patterns. This kit puts you at the centre of creating a persistence-of-vision (POV) display that turns heads with its mesmerising 360-degree visuals. You'll solder 16 individually addressable WS2812B LEDs onto a rotating arm, synced precisely by an Arduino Nano and an MPU6050 gyroscope, to paint full-colour globes line by line.
What You'll Build
You'll construct a motorised POV globe that displays predefined animations such as a rotating Earth, weather patterns, or custom pixel art. When spinning, each LED column traces a vertical slice; the brain fills the gaps, tricking the eye into seeing a complete sphere. You'll calibrate the MPU6050 for stable rotation and program the Arduino Nano to output vibrant, smooth animations via the FastLED library.
What You'll Learn
- Solder and assemble a multi-component rotating mechanism with slip rings for continuous power.
- Integrate an MPU6050 gyroscope/accelerometer to measure angular position for synchronised LED refresh.
- Write Arduino code to control WS2812B addressable LEDs using the FastLED library.
- Debug timing and mechanical balance for a seamless full-sphere POV effect.

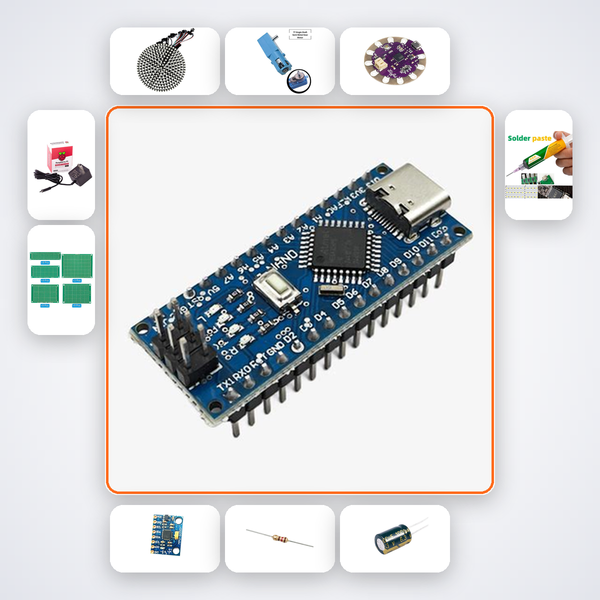

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| WS2812B 16-LED Strip | 1 |
| DC Motor | 1 |
| Slip Ring 4-ch | 1 |
| MPU6050 | 1 |
| 470? Resistors | 5 |
| 1000�F 6.3V Capacitors | 2 |
| 5V 3A Power Supply Unit | 1 |
| PCB Prototype Board | 2 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for B.Tech ECE and EEE students pursuing a capstone project, hardware track participants at Smart India Hackathon, and makers in advanced ATL Tinkering Labs exploring interactive visual displays. If you've soldered before and want to master motion-synchronised LED systems, this is your next challenge.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to start a chat with the AI companion trained exactly on this POV globe - it walks you through assembly, wiring, and code. You can also reach us on WhatsApp for quick hands-on guidance.
Does this kit require prior soldering experience?
Yes, this is an advanced kit and you'll be soldering through-hole components, the LED strip, and the slip ring connections. If you're new to soldering, we suggest completing a starter kit first; however, the AI companion provides detailed step-by-step instructions for every joint.
Can I change the globe animation to something other than Earth?
Absolutely. The open-source Arduino code lets you design any 16�360 pixel art or animation. We include sample patterns for a rotating Earth, abstract colour waves, and a text scroller. You can upload your own via USB.
How does the MPU6050 help keep the image stable?
The gyroscope measures the exact angular position of the rotating arm in real time. The Arduino Nano uses this data to fire the correct LED column at the precise angle, preventing drift or tearing even if motor speed fluctuates.
16 WS2812B LEDs on a spinning motor arm create a 360-degree POV sphere displaying animated globe patterns.
What's in this kit
- Arduino Nano
- WS2812B 16-LED Strip
- DC Motor
- Slip Ring 4-ch
- MPU6050
- 470? Resistors x5
- 1000�F 6.3V Caps x2
- 5V 3A PSU
- PCB Prototype Board x2
- Soldering Iron
- Solder Wire
Choose your assembly option:
- Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
