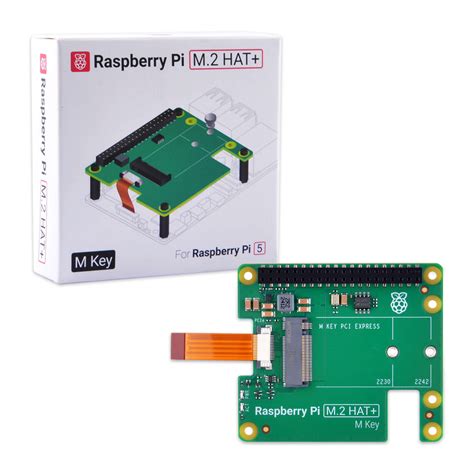

Raspberry Pi M.2 HAT+ NVMe SSD Expansion Board for Pi 5
Raspberry Pi M.2 HAT+ — NVMe SSD Expansion Board for Raspberry Pi 5
The Raspberry Pi M.2 HAT+ is an official add-on board that lets you connect M.2 NVMe SSDs directly to your Raspberry Pi 5. It uses the PCIe 2.0 x1 interface on the Pi 5's GPIO header, offering data transfers up to 500 MB/s. This HAT provides a compact and reliable way to expand storage for your Pi projects.
Key Specifications
| Specification | Value |
|---|---|
| Form Factor | HAT+ (Raspberry Pi 5 standard) |
| M.2 Slot | 2230 / 2242 NVMe SSD (M-key) |
| PCIe Interface | 2.0 x1 (up to 500 MB/s) |
| Power | 5V via GPIO header |
| Dimensions | 65 × 30 mm (approx) |
| Mounting | Includes standoffs and screws |
What You Can Build With This
- High-speed NAS server for your home network
- Boot your Raspberry Pi 5 directly from the NVMe SSD for faster OS loading
- Media center with large storage for movies and music
- Database server or web server with reliable storage
Compatibility
This HAT is designed specifically for the Raspberry Pi 5, utilizing its PCIe interface. It fits directly atop the GPIO header and secures with spacers. It supports NVMe SSDs only — SATA M.2 drives are not compatible. Works with standard Pi 5 power supplies.
Wiring Notes
Installation is straightforward: align the HAT with the GPIO header and press firmly. No soldering required. The M.2 SSD is secured with a brass standoff and screw. Ensure the Pi is powered off before attaching.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Raspberry Pi 4?
No, the M.2 HAT+ uses the PCIe interface exclusive to Raspberry Pi 5 and is not electrically compatible with older models.
Does it support SATA M.2 drives?
No, only NVMe SSDs with an M-key connector are supported. SATA-based M.2 drives will not work.
Can I boot from an SSD with this HAT?
Yes, Raspberry Pi 5 can boot directly from NVMe SSDs connected via this HAT with the latest firmware.
📦 Free Setup Handoff Document Included
Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.
Ask Soldr above what you can build with this — it knows every Compoden kit this part appears in.
