Arduino Mega Smoke and Gas Classifier Kit

SKU: CDN-KIT-3419-CL-SLD Brand: Compoden Category: Electronics > Sensor Starter Kits > Project Kits
Rs. 1,520.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Arduino Mega Smoke and Gas Classifier Kit — an advanced-level kit.

Build a PCA Smoke and Gas Classifier with Arduino Mega

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hours Skill: PCA gas signature separation

Garage air mixes paint thinner, petrol vapour and exhaust, which is a good test of a classifier. This kit goes beyond threshold beeping. Using four MQ sensors and principal component analysis (PCA) on an Arduino Mega, you'll build a classifier that learns to tell different gas signatures apart, logging data to a microSD card and showing the classification on a TFT screen. A learning prototype, not a certified safety device; fit certified smoke and gas alarms.

What You'll Build

A smoke and gas classifier that sorts readings into categories. You'll assemble a multi-sensor array (MQ-2, MQ-7, MQ-135, MQ-4) wired to a Mega, collect gas profiles, run PCA to reduce dimensions and cluster patterns, then code a classifier that triggers an alert only when a fire signature dominates. The 1.8" TFT shows the readings and the current class, while RTC-stamped data logs to microSD for analysis.

What You'll Learn

  • Multi-dimensional gas sensing and sensor fusion across four chemically different MQ elements
  • Principal Component Analysis in Arduino C++ - implemented from scratch without external libraries
  • Real-time data logging with DS3231 RTC and SPI microSD, timestamped for incident forensics
  • Designing classification code for mixed signals from LPG, CO and solvents

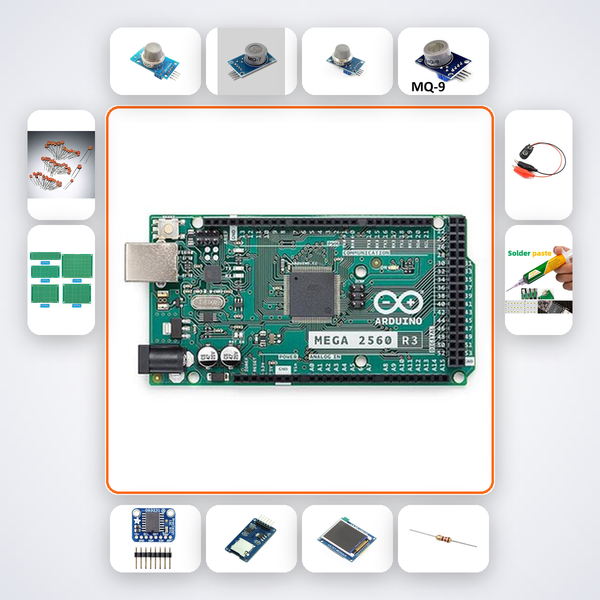

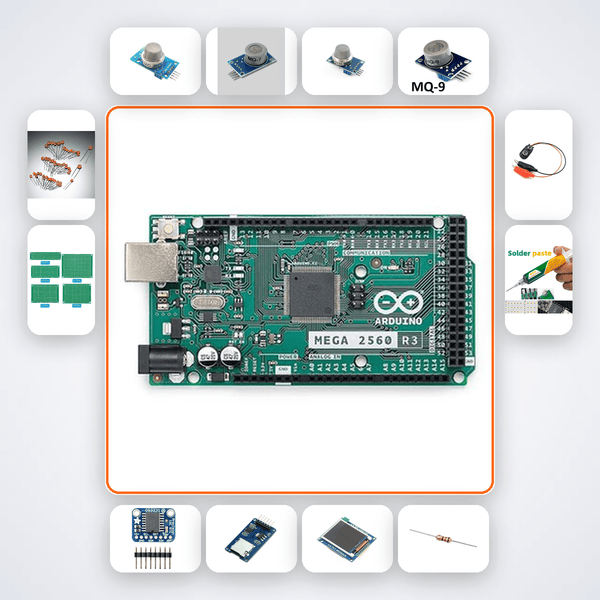

Kit Contents

Component Quantity
Arduino Mega 2560 1
MQ-2 gas sensor 1
MQ-7 carbon monoxide sensor 1
MQ-135 air quality sensor 1
MQ-4 methane sensor 1
DS3231 RTC module 1
MicroSD module 1
1.8in TFT ST7735 display 1
10kΩ Resistors 15
100nF Capacitors 15
PCB Prototype Board 2
9V Battery Snap 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

Built for final-year B.Tech ECE or EEE students tackling fire detection for Smart India Hackathon or capstone projects. If you're at IIT, NIT, VIT, or BITS and need a research-grade approach - PCA on a microcontroller - without chasing individual sensor specs, this kit delivers. ATL tinkering labs running advanced embedded+data science modules for 18+ students will also appreciate the guided, hands-on experience.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

The AI companion provides step-by-step troubleshooting, and you can reach our team on WhatsApp for human assistance.

Do I need prior PCA or matrix math knowledge?

Not necessarily. The companion explains the linear algebra behind each step, and the Arduino code is heavily commented so you can follow the computation line by line.

Can I log more than gas data with this setup?

Yes, the microSD module logs any sensor variable you add. The DS3231 timestamps all entries, perfect for expanding into a complete garage environment monitor.

Is this kit suitable for a garage with an LPG-powered car?

Absolutely. MQ-4 detects methane (CNG/LPG), while MQ-2 responds to LPG and smoke. PCA helps separate one gas signature from another in the logged data.

Garage Fire - MQ-2, MQ-7, MQ-135, MQ-4 read simultaneously. Principal component analysis on Mega separates gas signatures.
