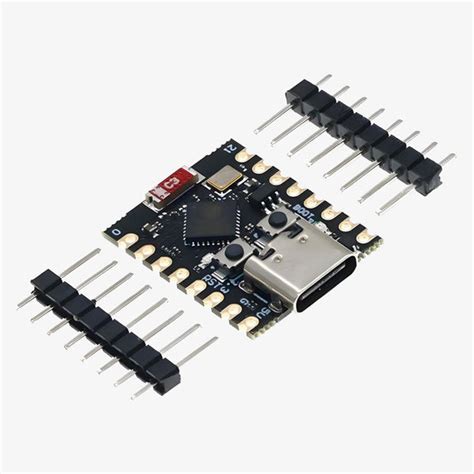

ESP32-C3 Super Mini Development Board (HW-466AB) – WiFi & BLE RISC-V Board

The ESP32-C3 Super Mini Development Board HW-466AB is a compact, low-power IoT board built around the ESP32-C3 RISC-V microcontroller. It offers 2.4 GHz Wi-Fi and Bluetooth 5 (LE) connectivity in a tiny form factor, making it ideal for space-constrained projects. With a USB-C port for programming and power, plus multiple GPIO pins, it's perfect for smart home sensors, wearables, and wireless automation.

Key Specifications

Specification Value
Chip ESP32-C3 (RISC-V single-core, 160 MHz)
Wireless Wi-Fi 802.11b/g/n, BLE 5.0
Memory 4 MB Flash, 400 KB SRAM
GPIO 12 pins (ADC, SPI, I2C, UART capable)
USB USB-C (power + programming)
Dimensions Approx. 18 x 26 mm

What You Can Build With This

Compatibility

This board is programmable using Arduino IDE, ESP-IDF, or MicroPython. It works with common sensors and modules over I2C, SPI, and UART, such as BME280, WS2812B LEDs, and SSD1306 OLEDs. Note that all GPIOs operate at 3.3V logic levels; attaching 5V signals may damage the board. Use level shifters if interfacing with 5V peripherals.

Wiring Notes

Power the board via the USB-C port (5V) or by connecting a 3.7V LiPo battery to the VBAT pin. Do not connect 5V directly to any GPIO pin. For I2C devices, external pull-up resistors (typically 4.7kΩ) on SDA and SCL are recommended. GPIO0 and GPIO2 affect boot mode; avoid pulling them low during reset unless you intend to enter programming mode.

Is this compatible with Arduino IDE?

Yes, you can program the ESP32-C3 using Arduino IDE by installing the ESP32 board package (use the stable release URL). Select "ESP32C3 Dev Module" as the board.

Can I use this board for battery-powered projects?

Absolutely. The ESP32-C3 supports deep sleep with current consumption below 5 µA, making it suitable for battery operation. Connect a 3.7V LiPo cell to the VBAT pin and use an external charger module for recharging.

Does the board have a built-in antenna?

Yes, it features an on-board ceramic antenna for Wi-Fi and BLE, so no external antenna is needed. The compact design maintains a small footprint.

Free Setup Handoff Document Included

Every Compoden order includes a free setup handoff document — step-by-step instructions to get your component working within minutes. Download it via QR code on your package. The handoff document is also trained to help you troubleshoot the majority of problems.

Pinout, specs and project ideas on Soldr →

Shipping Information

  • Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
  • COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
  • Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location

Returns & Warranty

  • 7-Day Return: Manufacturing defects only (approval required)
  • Warranty: 7 days from delivery
  • Non-Returnable: Batteries, consumables, cut wires, clearance items

View complete shipping policy →

View complete returns policy →

The official datasheet / documentation for this part:

View Datasheet

Pinout

PinFunction
GPIO0digital, adc1, output
GPIO1digital, adc1, output
GPIO2digital, adc1, strapping, output
GPIO3digital, adc1, output
GPIO4digital, adc1, output
GPIO5digital, output
GPIO6digital, output
GPIO7digital, output
GPIO8digital, strapping, onboard led, output
GPIO9digital, strapping, boot button, output
GPIO10digital, output
GPIO20digital, uart0 rx
GPIO21digital, uart0 tx, output

Boot pins — avoid for buttons/pull-ups: GPIO2, GPIO8, GPIO9
