Automatic Pet Feeder Kit with Arduino Uno + TCS3200
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Automatic Pet Feeder Kit with Arduino Uno + TCS3200 — a beginner-level kit.
Build a Colour-Sorting Automatic Pet Feeder with Arduino Uno & TCS3200 Sensor
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Make mealtimes magical—this kit lets you build a responsive pet feeder that reads the colour of a treat and drops it into the matching bowl. Using the TCS3200 sensor and two SG90 servos, the system identifies red, green or blue objects, then a lifelike arm sorts them into separate bins. It’s the perfect weekend project for makers, parents, and educators exploring real-world robotics.
What You'll Build
You’ll assemble a tabletop automatic feeder with a colour-detection chamber. When a colourful treat token is placed under the sensor, the Arduino reads its RGB value and commands the servo arm to tilt toward the correct bin. By the end, you’ll have a working machine that can feed your pet (or a toy pet) different “meals” based on colour—ideal for school science exhibitions, ATL tinkering labs, or playful home automation.
What You'll Learn
- Interface a TCS3200 colour sensor and calibrate it to distinguish red, green and blue objects
- Control two SG90 servo motors to build a mechanical sorting arm
- Write Arduino code that reads sensor data and triggers precise movements
- Assemble circuits on a breadboard and manage power with a 9V battery

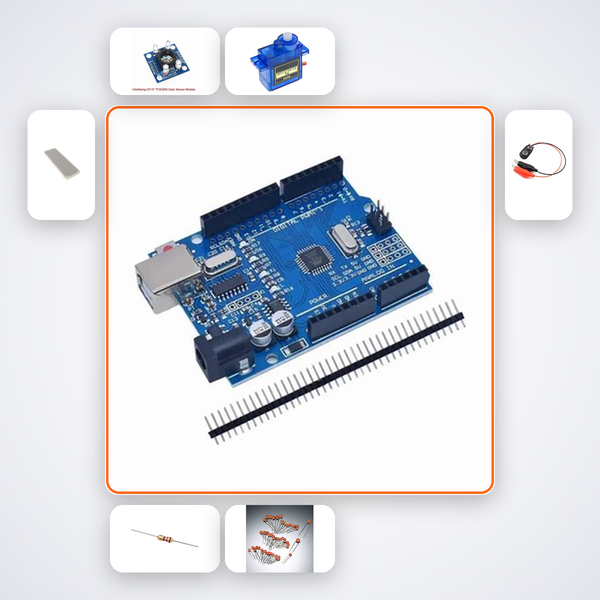

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| TCS3200 Colour Sensor | 1 |
| SG90 Servo | 2 |
| 10kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 25 |
| M-F Wires | 15 |
| 9V Battery Snap | 1 |
Who This Kit Is For
This kit suits CBSE electronics practicals, ATL Tinkering Labs and Smart India Hackathon tracks. Parents looking for a screen-free STEM activity will love the guided build, while B.Tech ECE students can use it as a foundation for sensor-based automation projects. Even pet-loving hobbyists find it a delightful introduction to Arduino robotics.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to open your AI companion; it walks you through each connection and code block. You can also send a WhatsApp message to our Bengaluru team for a same-day reply.
Can I use this feeder for my real pet?
Yes—you can place colourful treat dispensers or teach your dog to nudge a specific colour into the sensor. Start with toy tokens, then adapt with pet-safe accessories.
Does the colour sensor work in low light?
The TCS3200 relies on white LED illumination built into the sensor module. Use in normal indoor light; dark rooms may need a small external light source for consistent readings.
Pet Care — TCS3200 colour sensor identifies red, green or blue objects and a servo arm drops them into sorted bins.
What's in this kit
- Arduino Uno R3
- TCS3200 Colour Sensor
- SG90 Servo x2
- 10kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x25
- M-F Wires x15
- 9V Battery Snap
