Maze-Solving Wall-Follower Robot Kit: Uno, 2× HC-SR04, 2WD
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Maze-Solving Wall-Follower Robot Kit: Uno, 2× HC-SR04, 2WD — a beginner-level kit.
Maze-Solving Wall-Follower Robot Kit: Uno, 2× HC-SR04, 2WD
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A wall-following maze robot: two HC-SR04 sensors watch the front and left, and an Arduino Uno keeps the robot's left side near a wall, turning at gaps and corners, so it finds its way through a simple maze of boxes.

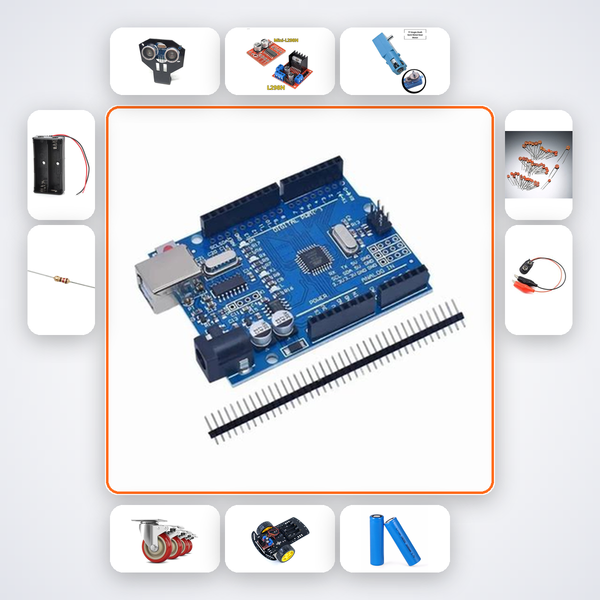

What's in the box
- Arduino Uno R3
- HC-SR04 Ultrasonic × 2
- L298N Motor Driver
- TT Gear Motor × 2
- Castor Wheel
- 2WD Chassis
- 18650 Cell × 2
- 18650 2-Cell Holder
- 10kΩ Resistors × 5
- 100nF Caps × 5
- M-M Wires × 25
Power: two 18650 cells included. A charger is not included.
Skill level: Intermediate (4-5 hours).
Frequently asked questions
Does left-hand following always work?
For mazes with no loops, yes.
What do I build the maze from?
Cardboard boxes or books.
What if a simple robot could navigate a maze entirely on its own, using only two ultrasonic eyes and a left-hand-following rule?
What You'll Build
Your finished project is a 2WD robot car that uses dual HC-SR04 ultrasonic sensors to detect walls and obstacles. With the left-hand wall-following algorithm loaded onto the Arduino Uno, the robot smoothly navigates through a simple maze, always keeping the left wall at a set distance while avoiding collisions. It’s a tangible demonstration of how assistive technology can empower independent mobility.
What You'll Learn
- Wiring dual ultrasonic sensors and an L298N motor driver to Arduino Uno
- Reading accurate distance measurements from HC-SR04 sensors
- Designing a left-hand wall-following algorithm using sensor feedback
- Calibrating motor speeds and sensor thresholds for smooth autonomous navigation
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| HC-SR04 Ultrasonic | 2 |
| L298N Motor Driver | 1 |
| TT Gear Motor | 2 |
| Castor Wheel | 1 |
| 2WD Chassis | 1 |
| 18650 Cell | 2 |
| 18650 2-Cell Holder | 1 |
| 10kΩ Resistors | 5 |
| 100nF Caps | 5 |
| M-M Wires | 25 |
Who This Kit Is For
It aligns perfectly with Smart India Hackathon challenges on disability assistance and ATL Tinkering Lab modules on autonomous systems.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to start a chat with the AI companion trained on this exact kit. If you need a human touch, write to us on WhatsApp — we respond.
Does this kit require any soldering?
No soldering is needed. All connections use jumper wires and the components plug directly into the Arduino or motor driver screw terminals.
Can I program the robot without prior coding experience?
Absolutely. The kit includes pre-written Arduino code with line-by-line explanations. You can upload it immediately and then learn to modify parameters like wall-following distance.
Will the robot avoid obstacles in a real room?
Yes, the wall-following algorithm works in corridors and rooms with smooth walls. For cluttered spaces, you can easily add logic to stop or turn based on sensor readings.
What additional equipment do I need?
You’ll need a computer with the Arduino IDE installed and a USB cable to upload the code. Everything else is in the box.
What's in this kit
- Arduino Uno R3
- HC-SR04 Ultrasonic x2
- L298N Motor Driver
- TT Gear Motor x2
- Castor Wheel
- 2WD Chassis
- 18650 Cell x2
- 18650 Holder
- 10kΩ Resistors x5
- 100nF Caps x5
- M-M Wires x25
