Build a Fully Autonomous Drone Flight Controller with Dual‑Core Real‑Time Processing

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Take on the challenge of building a professional‑grade quadcopter flight controller from the silicon up. Instead of buying an off‑the‑shelf flight stack, you’ll architect the software yourself using the Arduino Portenta H7’s dual‑core STM32H747: the M7 core runs a 1 kHz Madgwick AHRS filter and cascaded PID stabilisation loops, while the M4 core simultaneously parses NEO‑6M GPS data, executes waypoint navigation, and issues high‑level flight commands. The result is an autonomous UAV that can hold attitude within fractions of a degree and follow GPS waypoints without a separate companion computer.

What You'll Build

You’ll assemble and code a full F450‑class quadcopter with a custom‑fabricated flight controller. The moment you throttle up, the M7’s 1 kHz attitude loop keeps the frame rock‑steady, while the M4 autonomously flies a pre‑programmed GPS route. You’ll see Madgwick quaternion output streaming to a terminal, PID terms dynamically adjusting, and the drone transitioning from manual stabilisation to fully autonomous waypoint mode—all running on bare‑metal Portenta H7 without a Linux coprocessor.

What You'll Learn

• Implement a Madgwick AHRS sensor fusion algorithm on the M7 core using ICM‑20948 9‑DOF IMU data at 1 kHz update rate
• Design and tune cascaded PID controllers for roll, pitch, and yaw stabilisation on a real brushless quadcopter
• Segregate hard real‑time control (M7) from GPS navigation and mission logic (M4) using the Portenta’s dual‑core RPC mechanism
• Integrate GPS waypoint following, NMEA sentence parsing, and autonomous flight state machines into the M4 firmware

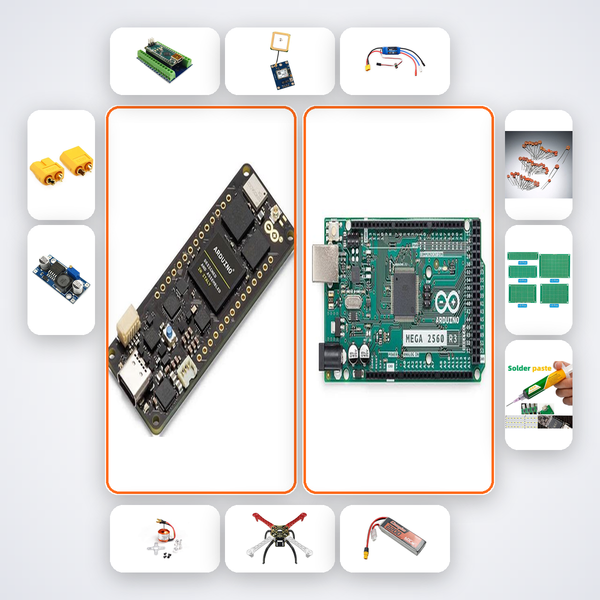

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

This kit is built for advanced makers who already understand embedded C/C++ and want to push into real‑time control and autonomous navigation. It’s an ideal capstone project for B.Tech ECE/EEE students at IITs, NITs, or VIT, a hardware entry for Smart India Hackathon, or a research prototype platform for M.Tech UAV specialisations. Drone startup teams use it to validate custom flight‑stack ideas without designing a full PCB from scratch.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
