Drone Altimeter Kit with Arduino Nano + BMP280
Drone Altimeter Kit with Arduino Nano & BMP280 — CanSat-Style Telemetry Payload
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This advanced kit lets you build a fully independent telemetry payload no larger than a soda can. Deploy it in a drone, model rocket, or experimental CanSat — the onboard Arduino Nano reads BMP280 altitude, MPU6050 acceleration and gyro data, and GPS position, then streams everything over NRF24L01 to a companion ground station receiver. Log all sensor data to microSD and monitor live readings on an OLED display, recreating the core avionics of a sounding rocket or student satellite.
What You'll Build
You'll assemble and program a two-node system: an airborne payload that continuously collects altitude, orientation, and GPS data, and a ground station that receives and displays the telemetry in real time. This isn't a simple sensor experiment — it's a complete wireless data acquisition system that mirrors the architecture used in CanSat competitions, rocketry payloads, and Cubesat prototypes.
What You'll Learn
- Sensor fusion: reading BMP280 barometric pressure, MPU6050 6‑axis IMU, and NEO‑6M GPS simultaneously
- NRF24L01 radio communication: building a reliable point‑to‑point link for streaming telemetry packets
- Real‑time data logging to microSD with timestamped CSV records
- Designing a portable, battery‑powered system with LiPo charging and voltage regulation

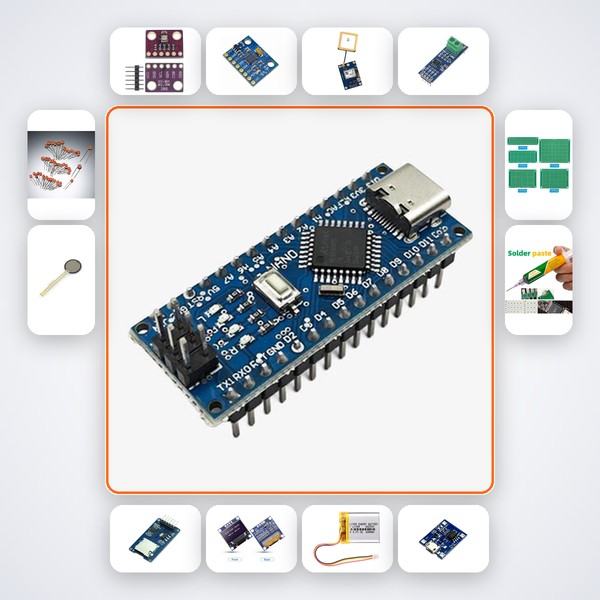

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 2 |
| BMP280 Barometric Pressure Sensor | 1 |
| MPU6050 6‑Axis Accelerometer + Gyroscope | 1 |
| NEO‑6M GPS Module | 1 |
| NRF24L01 2.4 GHz Transceiver | 2 |
| MicroSD Card Module | 1 |
| 0.96 inch OLED Display (128x64) | 1 |
| 3.7V 500mAh LiPo Battery | 1 |
| TP4056 LiPo Charger Module | 1 |
| 100nF Ceramic Capacitor | 10 |
| 4.7kΩ Resistor | 5 |
| PCB Prototype Board | 3 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit is designed for engineering students participating in the CanSat competition, Smart India Hackathon, or final‑year projects in aerospace and electronics. It’s ideal for B.Tech ECE/EEE/ME students at IITs, NITs, VIT, BITS Pilani, and state technical universities. CBSE Class 12 students with strong programming and soldering experience who are building portfolios for competitive exams can also take it on as a capstone project.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Our AI companion walks you through each wiring connection and code block. If something isn't clear, message us on WhatsApp and a Compoden engineer will help you debug.
Does this kit include everything I need to start soldering?
Yes. The kit includes a soldering iron, solder wire, and prototype boards. No additional tools are necessary.
Can I fly this payload on a drone or model rocket?
Absolutely. The lightweight, compact design fits a standard CanSat form factor. The payload is powered by a 500mAh LiPo and transmits up to 1 km line‑of‑sight with the NRF24L01 modules.
How do I view the telemetry data on the ground?
The ground station Arduino receives data via NRF24L01 and displays it on the OLED in real time while simultaneously writing to microSD. You can later transfer the CSV file to a computer for analysis.
Drone — CanSat-sized payload transmits BMP280, MPU6050 and GPS data over NRF24L01 to a ground station in real time.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
