Drone GPS Navigator Kit
Drone GPS Navigator Kit: Build a Real-Time Asset Tracker with Arduino Nano & LoRa
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
For security teams, field researchers, and drone tinkerers needing location awareness beyond visual line of sight, this kit delivers a complete 433 MHz LoRa GPS transmission system. Powered by dual Arduino Nanos and RA-02 modules, it sends NEO-6M coordinates every half-minute to a gateway receiver with OLED display — a proven architecture for surveillance drone projects and asset monitoring. You'll solder the transmitter directly onto a prototype board, power it from a LiPo cell, and walk away with a deployable tracking payload.
What You'll Build
A functioning drone-mounted GPS tracker that broadcasts real-time latitude, longitude, and altitude over LoRa to a base station. The receiver listens on the 433 MHz band, decodes the packets, and displays live coordinates on a crisp OLED screen — all built on prototype boards, ready for field deployment or integration into a custom drone frame. You'll have a dependable wireless link you can troubleshoot and fine-tune for your specific mission profile.
What You'll Learn
- Configure and pair RA-02 LoRa modules for long-range, low-power communication
- Parse NMEA sentences from NEO-6M GPS with Arduino Nano
- Design a robust power system with LiPo battery and TP4056 charging module
- Build and troubleshoot a dual-microcontroller wireless telemetry link

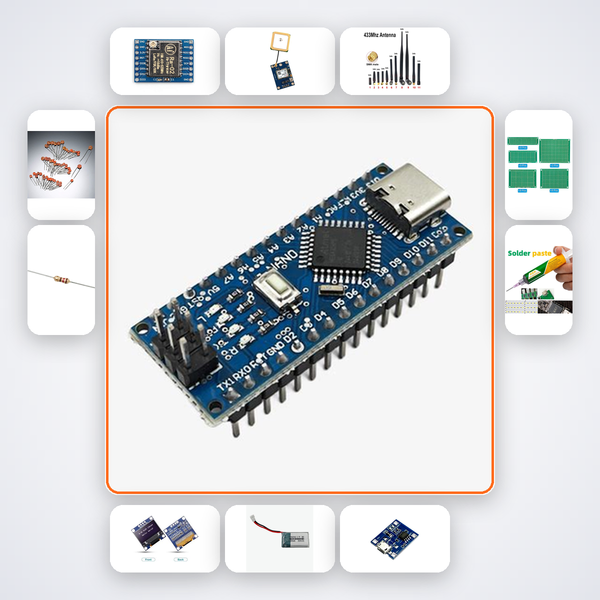

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 2 |
| RA-02 LoRa SX1278 | 2 |
| NEO-6M GPS | 1 |
| 433MHz Antenna | 2 |
| 0.96in OLED | 1 |
| 3.7V LiPo 1000mAh | 1 |
| TP4056 Module | 1 |
| 100nF Caps | 10 |
| 4.7kΩ Resistors | 5 |
| PCB Prototype Board | 2 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
B.Tech ECE/EEE students working on final-year surveillance drone projects, Smart India Hackathon participants prototyping remote monitoring solutions, and advanced hobbyists from IIT, NIT, VIT, or BITS Pilani who need a reliable LoRa GPS stack without spending weeks debugging SPI conflicts and power brownouts. This kit assumes you have prior Arduino programming experience and can solder confidently.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on your kit box to access the AI companion, which guides you through each wiring step and code upload. You can also reach us on WhatsApp for human support within working hours.
Can this system track multiple drones simultaneously?
The single-receiver setup decodes one transmitter at a time, but with additional Nanos and unique node IDs, you can expand to multi-drone fleets using the same LoRa architecture.
How do I extend the transmission range beyond the default?
You can solder a higher-gain 433MHz antenna, adjust spreading factor in code, or position the receiver higher. The AI companion includes optimization tips for real-world terrain.
Why use LoRa instead of Wi-Fi for drone GPS?
LoRa offers kilometer-range, low-power communication that outlasts Wi-Fi’s short reach and avoids telemetry dropouts during high-speed maneuvers, making it ideal for surveillance drones operating beyond visual line of sight.
Drone — Arduino Nano + RA-02 LoRa transmits GPS coordinates every 30 seconds from asset to gateway receiver.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
