IoT Weather Station with Cloud Dashboard
ESP32 IoT Weather Station Kit: Monitor Temperature, Humidity, UV, and Rain on a Live Grafana Dashboard
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Deploy a fully functional weather monitoring station that measures ambient temperature, humidity, barometric pressure, UV index, and rainfall. Data streams wirelessly via MQTT to an InfluxDB time-series database and appears on a customizable Grafana dashboard — accessible from any browser. Ideal for agricultural IoT, research weather stations, or proof-of-concept cloud-connected sensor networks.
What You'll Build
A weatherproof outdoor enclosure housing an ESP32 microcontroller that reads multiple environmental sensors, logs data with precise timestamps from an RTC, caches measurements on microSD, and transmits payloads over Wi-Fi to an MQTT broker. The live Grafana dashboard displays trend graphs, gauges, and alerts for temperature, humidity, pressure, UV index, and rainfall.
What You'll Learn
- Integrate multiple I2C, analog, and digital sensors on the ESP32 platform
- Set up an MQTT broker and InfluxDB time-series database for IoT data pipelines
- Design a Grafana dashboard with dynamic visualizations and alert rules
- Deploy a battery-powered, solar-capable field station using power management and waterproofing

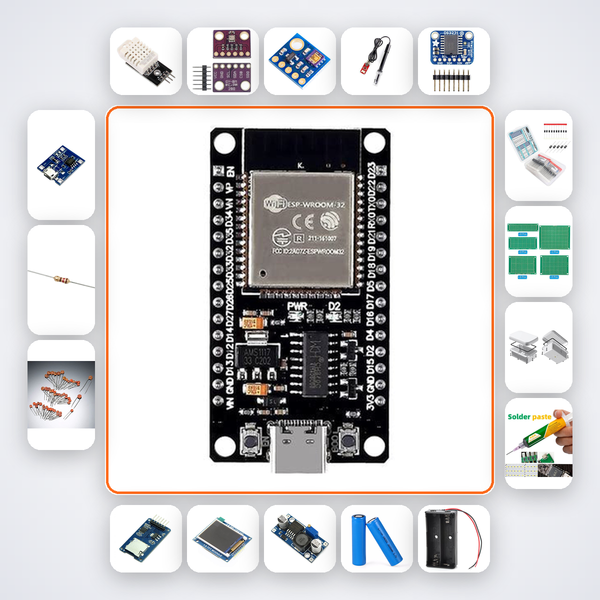

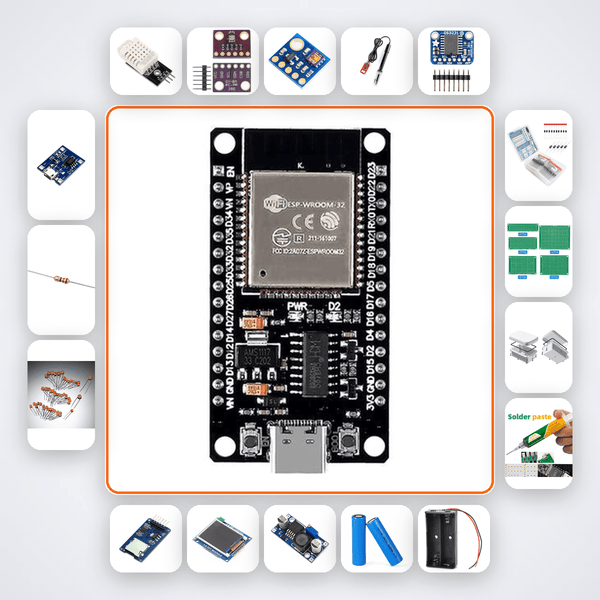

Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 1 |
| DHT22 | 1 |
| BMP280 | 1 |
| ML8511 UV | 1 |
| Rain Sensor | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 1.8in TFT ST7735 | 1 |
| LM2596 Buck Converter | 1 |
| 18650 Cell | 2 |
| 18650 Holder | 1 |
| TP4056 Module | 1 |
| 10kΩ Resistors | 10 |
| 4.7kΩ Resistors | 10 |
| 100nF Caps | 10 |
| 1N5819 Diode | 5 |
| PCB Prototype Board | 2 |
| Waterproof Enclosure | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This kit suits electrical engineering students pursuing B.Tech or M.Tech final-year projects in IoT or sensor networks, researchers in agriculture or environmental science needing a ready-to-deploy weather station, and hobbyists who have built basic Arduino projects and want to move to cloud-connected embedded systems. The project aligns with Smart India Hackathon hardware themes and IIT/NIT lab curricula that emphasize wireless sensor networks and time-series analytics.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
If a step isn't working, open the AI companion via QR code — it's trained on this kit's exact wiring and software setup. If that's not enough, WhatsApp us and a build expert will help the same day.
Do I
ESP32 publishes temperature, humidity, pressure, UV, rain to MQTT broker. Live Grafana dashboard via InfluxDB.
What's in this kit
Choose your assembly option:
-
Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
-
Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
ESP32 publishes temperature, humidity, pressure, UV, rain to MQTT broker. Live Grafana dashboard via InfluxDB.
What's in this kit
Shipping Information
- Prepaid Orders: ₹75 for orders up to ₹999, FREE shipping above ₹999
- COD Orders: ₹125 shipping + ₹50 COD fee = ₹175 total
- Delivery Timeline: Dispatch in 1-2 days, delivery in 2-7 days depending on location
Returns & Warranty
- 7-Day Return: Manufacturing defects only (approval required)
- Warranty: 7 days from delivery
- Non-Returnable: Batteries, consumables, cut wires, clearance items
