Lab Gas Monitor Kit with Arduino Mega
Lab Gas Monitor Kit with Arduino Mega – Multi-Gas Safety System
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
Build a lab safety monitor that reads MQ-2, MQ-7, MQ-135, and MQ-4 simultaneously, logs data with time stamps to a microSD card, and displays real-time gas concentrations on a TFT screen. Using principal component analysis (PCA) on the Arduino Mega, you’ll separate overlapping gas signatures – a critical skill for chemical, biochemical, and electronics labs. This project delivers a ready‑to‑deploy instrument for real‑world safety monitoring.
What You'll Build
You’ll assemble a complete gas monitoring station that detects smoke, LPG, methane, carbon monoxide, and ammonia/sulfide gases in parallel. The system applies PCA on the Mega to distinguish gas types even when sensor responses overlap, avoiding false alarms and giving lab personnel clear, actionable readings. Data is logged with DS3231 timestamps to the microSD for post‑incident analysis, while the 1.8‑inch TFT displays live sensor values and gas‑probability in real time.
What You'll Learn
- Simultaneously read multiple analog gas sensors and apply signal conditioning on Arduino Mega
- Implement PCA algorithm on a microcontroller to separate overlapping gas signatures
- Log time‑stamped sensor data to microSD with DS3231 RTC for compliance and review
- Design and solder a robust PCB prototype for a lab‑grade instrument
Kit Contents

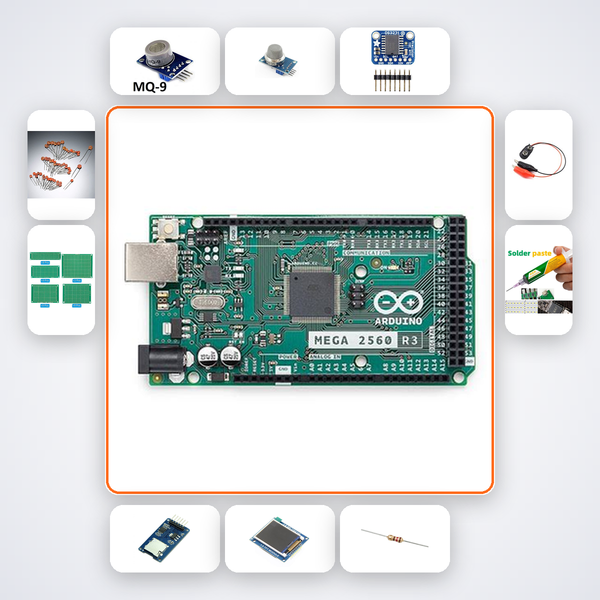

| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| MQ-2 | 1 |
| MQ-7 | 1 |
| MQ-135 | 1 |
| MQ-4 | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 1.8in TFT ST7735 | 1 |
| 10kΩ Resistors | 15 |
| 100nF Capacitors | 15 |
| PCB Prototype Board | 2 |
| 9V Battery Snap | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Advanced B.Tech students (ECE, EEE, Chemical, Instrumentation) taking on lab‑safety or environmental‑monitoring projects will find this kit a perfect match. Research scholars setting up continuous air‑quality monitoring in academic labs, and Smart India Hackathon teams tackling industrial safety challenges, will appreciate the ready‑to‑assemble hardware and PCA‑based logic. If you’re already comfortable with soldering and Arduino coding, this kit pushes your skills into multivariate sensor fusion.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Your kit’s AI companion, accessible via QR code, walks you through every step. For additional support, our WhatsApp team answers within hours.
Does this kit require prior experience with PCA?
Yes, familiarity with Arduino programming and basic statistics is expected. The AI companion explains the PCA math and supplies ready‑to‑upload code that you can modify.
Can I run the monitor 24/7 in a lab?
With a 9V‑DC adapter (not included) and a suitable enclosure, the monitor can operate continuously. The included battery snap supports portable testing and prototyping.
Is soldering mandatory?
Absolutely. You’ll solder all four gas sensors and modules onto the prototype board for a stable, permanent setup. The kit includes a soldering iron and quality solder wire.
