Laundry Detergent Level Monitor Kit with Arduino Uno + Ultrasonic
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Laundry Detergent Level Monitor Kit with Arduino Uno + Ultrasonic — an intermediate-level kit for teens.
Laundry Detergent Level Monitor Kit with Arduino Uno & Ultrasonic Sensor — Get Alerts Before Detergent Runs Out
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 1-5 days.
Running out of detergent mid-laundry is a common frustration in busy Indian households and hostels. This kit transforms a standard detergent drum into a smart container that shows the remaining level as a percentage on an OLED display and sounds an alert when the detergent drops below 20%. You’ll build a reliable, battery-powered monitor using an Arduino Uno and an HC-SR04 ultrasonic sensor — no plumbing or modifications to the drum required.
What You'll Build
You’ll create a compact sensor unit that mounts under the detergent drum’s lid. The HC-SR04 fires ultrasonic pulses down toward the liquid surface and measures the echo time to calculate the remaining detergent volume. The OLED displays a clear percentage, and when the level falls below 20%, a loud active buzzer alerts anyone in the room. The whole system runs on a single 9V battery for quick deployment.
What You'll Learn
- Calibrating an HC-SR04 ultrasonic sensor to convert distance into liquid percentage
- Programming Arduino Uno to drive a 0.96-inch OLED display via I2C
- Implementing threshold-based alerts with an active buzzer
- Building and testing a breadboard prototype with 10kΩ pull-up resistors and filtering capacitors

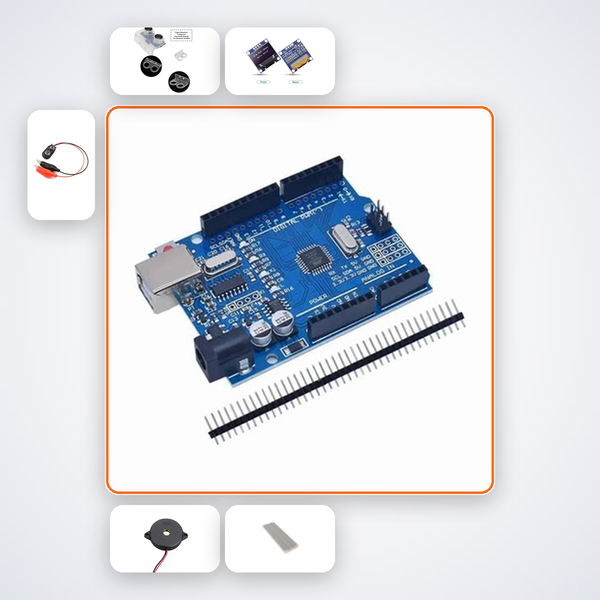

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| HC-SR04 | 1 |
| 0.96in OLED | 1 |
| Active Buzzer | 1 |
| 10kΩ Resistors | 5 |
| 100nF Caps | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
HC-SR04 in detergent drum measures remaining level. OLED shows percentage and alerts when below 20%.
What's in this kit
- Arduino Uno R3
- HC-SR04
- 0.96in OLED
- Active Buzzer
- 10kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
