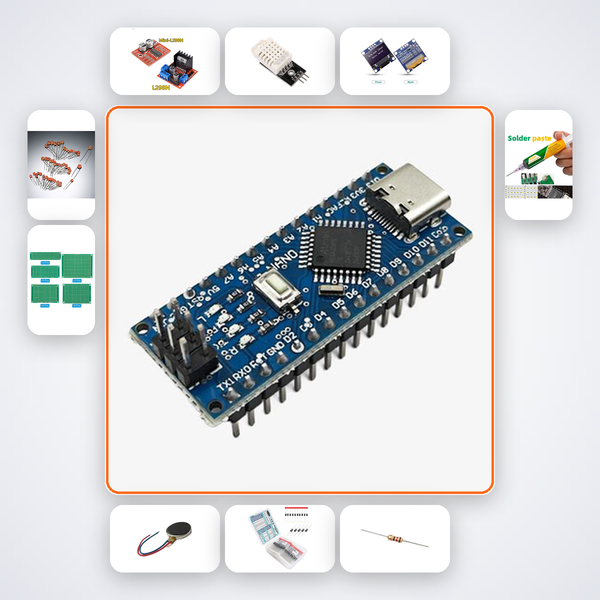

Nano Motor Controller Shield Kit with Arduino Nano + DHT22
Build an Integrated Motor Controller Shield for Arduino Nano with DHT22 & OLED
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
From building a smart fan that adjusts speed based on room temperature to creating a mini robotic base with display feedback, this kit lets you assemble and program your own custom Arduino Nano shield—all on a 50x50mm PCB. It’s a complete, intermediate-level soldering and coding project that bridges hardware and software in one compact system, giving you a tangible, practical device by the end.
What You'll Build
You’ll assemble a through-hole soldered shield board that slots directly onto an Arduino Nano, integrating a L298N dual motor driver, a DHT22 temperature/humidity sensor, and a 0.96-inch OLED display. Once built, you can drive two DC motors while monitoring environmental data on the screen, perfect for automation or robotics projects that need motor control with real-time sensor feedback.
What You'll Learn
- Soldering through-hole components and assembling a custom PCB shield with confidence
- Programming Arduino Nano to control DC motors using PWM and a L298N driver
- Reading temperature and humidity data from a DHT22 sensor and displaying it on an OLED
- Integrating multiple components into a compact, working system and debugging hardware-software interactions
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | x1 |
| L298N Driver | x1 |
| DHT22 | x1 |
| 0.96in OLED | x1 |
| DC Motor 5V | x2 |
| 1N4007 Diode | x5 |
| 4.7kΩ Resistors | x5 |
| 10kΩ Resistors | x5 |
| 100nF Caps | x5 |
| PCB Prototype Board | x3 |
| Soldering Iron | x1 |
| Solder Wire | x1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
This intermediate kit is designed for students and hobbyists who have basic Arduino experience and want to advance into PCB design and motor control. It’s ideal for CBSE Class 11–12 electronics enthusiasts, B.Tech ECE/EEE students working on mini projects, or participants in Smart India Hackathon and ATL Tinkering Lab challenges. Whether you're building a contest-ready prototype or a personal automation project, this kit gives you a real-world integration challenge that reinforces soldering, coding, and system thinking.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to start a guided conversation with your AI build companion, trained specifically for this motor shield project. If you need human help, you can also reach us on WhatsApp—we respond quickly.
Is this kit suitable for someone who has never soldered before?
It’s an intermediate kit, so some soldering experience is recommended. But the included PCB prototype boards and detailed AI steps will help you practice and improve. We’ve designed the shield with only through-hole parts to keep the soldering accessible.
Can I use this shield for a robotics competition or college project?
Absolutely. Once assembled and programmed, the integrated motor driver and sensor system is ready for small robot chassis, automated plant watering systems, or any project that needs motor control with temperature/humidity feedback. Many students use our kits for Smart India Hackathon, ECE mini projects, and robotics clubs.
What if I damage a component during soldering?
If a component fails due to a manufacturing defect, we’ll replace it free within 7 days. For accidental soldering damage, we can help you identify the failed part and arrange a quick replacement—usually with the same shipping speed. Reach out on WhatsApp for immediate assistance.
Custom PCB design on 50x50mm fits Nano, L298N, DHT22 and OLED. All through-hole soldered shield.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
