Sedentary Vibration Reminder Kit with Arduino Nano + Coin Vibration Motor
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Sedentary Vibration Reminder Kit with Arduino Nano + Coin Vibration Motor — a beginner-level kit.
Create a Wearable Sedentary Alert with Arduino Nano: Vibrates Every 30 Minutes to Keep You Active
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A silent break reminder: a DS3231 clock keeps time and, every 30 minutes, an Arduino Nano buzzes a coin vibration motor through a BC547 transistor. Change the interval in code for study sprints, stretch breaks or any regular reminder.

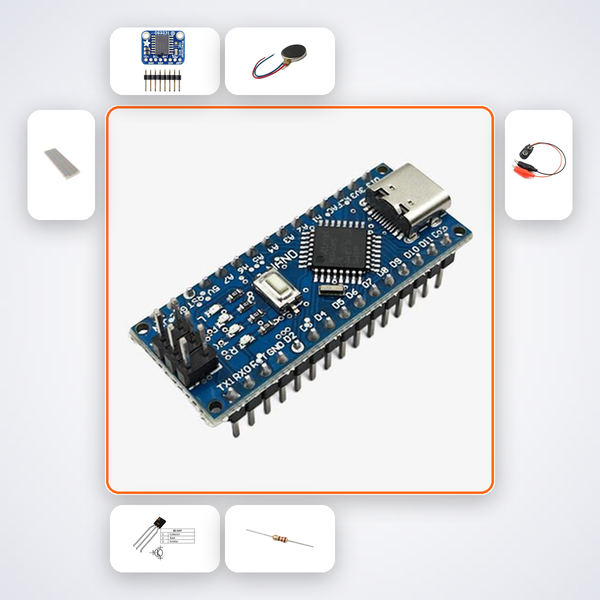

What's in the box
- Arduino Nano
- DS3231 RTC
- Coin Vibration Motor
- BC547 Transistor
- 4.7kΩ Resistors × 5
- 100Ω Resistors × 5
- 400-pt Breadboard
- M-M Wires × 15
- 9V Battery Snap
Power: 9V battery, not included.
Skill level: Beginner (1-2 hours, no soldering).
Frequently asked questions
Why a transistor?
The motor needs more current than an Arduino pin can give, so the transistor switches it.
Can I change the interval?
Yes. It's one number in the code.
Does it detect when I stand up?
No. There is no motion sensor in this kit.
Sitting for hours harms health, especially for young students and desk workers. This kit turns an Arduino Nano into a lightweight clip-on reminder that vibrates silently every 30 minutes, nudging you to stand up and move. The real magic: the same vibration motor doubles as a movement sensor, detecting when you actually get up and resetting the timer—no extra tilt switch required.
What You'll Build
You’ll assemble a compact, battery-powered wearable that attaches to your clothing or wrist. It keeps accurate time with the DS3231 real-time clock, triggers a discreet vibration alert on schedule, and then watches for your movement. Once you stand and start moving, the motor itself sends a tiny signal back to the Nano to reset the 30‑minute countdown.
What You'll Learn
- Program an Arduino Nano to work with a DS3231 real-time clock module
- Drive a coin vibration motor using a BC547 transistor switching circuit
- Use the motor’s back‑EMF as a movement detection signal (sensor‑less trick)
- Build a wearable prototype on a breadboard and power it from a 9V battery
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Nano | 1 |
| DS3231 RTC | 1 |
| Coin Vibration Motor | 1 |
| BC547 Transistor | 1 |
| 4.7kΩ Resistors | 5 |
| 100Ω Resistors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 15 |
| 9V Battery Snap | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor
RTC triggers vibration motor every 30 minutes to remind wearer to stand up. Reset by movement. What's in this kit
|
|---|
