Smart Garden Watering Kit with Arduino Mega + Sensor

SKU: CDN-KIT-2983-CL-SLD Brand: Compoden Category: Electronics > Home Automation > Project Kits
Rs. 2,390.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

4-Bed Garden Watering Controller Kit: Mega, Valves, Sensors — an advanced-level kit.

4-Bed Garden Watering Controller Kit: Mega, Valves, Sensors

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6-8 hrs Skill: Multi-zone irrigation control and RTC scheduling

Kit at a glance

What you build: A four-bed garden watering controller: give vegetables, herbs, flowers and a fruit tree their own moisture thresholds, and an Arduino Mega opens each bed's 12V solenoid valve when its soil sensor reads dry, with a DS3231 schedule to avoid midday watering.

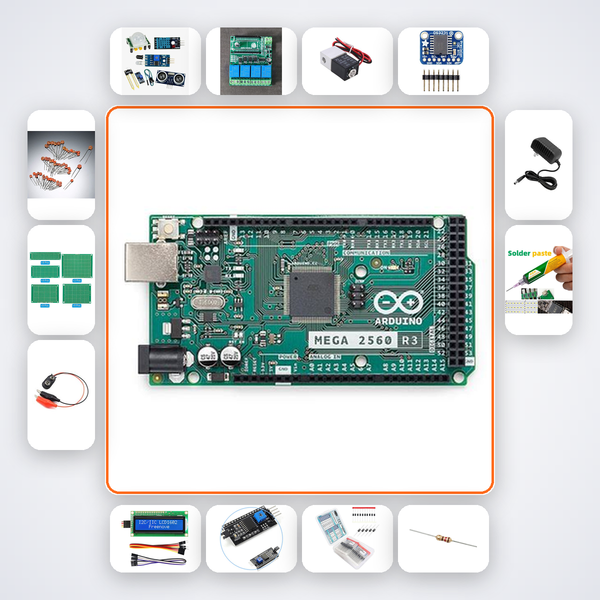

What's in the box

  • Arduino Mega 2560
  • Soil Moisture Sensor × 4
  • 4-ch Relay Module
  • 12V Solenoid Valve × 4
  • DS3231 RTC
  • 16x2 LCD
  • I2C Backpack
  • 1N4007 Diode × 10
  • 10kΩ Resistors × 10
  • 100nF Caps × 10
  • PCB Prototype Board × 2
  • M-M Wires × 30
  • 12V Adapter
  • Soldering Iron
  • Solder Wire

Power: 12V adapter included. Pipes and fittings are not included.

Skill level: Advanced (5-6 hours).

Frequently asked questions

Can each bed have its own setting?

Yes, each sensor has its own threshold.

Why avoid midday?

More water evaporates in the heat.

Take charge of your garden's hydration with a custom four-zone irrigation brain. You'll bury moisture sensors in each bed, wire solenoid valves to your water line, and program an Arduino Mega that reads the soil and respects a real-time schedule—watering only when needed and only when the calendar says it's okay. Ideal for terrace gardens, polyhouse automation, or engineering capstone projects that demand a working prototype with real-world field inputs.

What You'll Build

A standalone controller with an LCD that scrolls through each zone's moisture level and valve status. Four soil probes feed analog data to the Mega; four 12V solenoid valves connect through a relay module protected by flyback diodes. The DS3231 RTC enforces two watering windows per day, while the logic overrides the schedule if the soil is already wet—saving water and preventing root rot.

What You'll Learn

  • Interfacing multiple analog soil moisture sensors with Arduino Mega
  • Controlling 12V solenoid valves via relays and diode protection
  • Using a DS3231 RTC module to implement time-based scheduling logic
  • Integrating an LCD with I2C backpack for real-time status display

Kit Contents

Component Quantity
Arduino Mega 2560 x1
Soil Moisture Sensor x4
4-ch Relay Module x1
12V Solenoid Valve x4
DS3231 RTC x1
16x2 LCD x1
I2C Backpack x1
1N4007 Diode x10
10kΩ Resistors x10
100nF Caps x10
PCB Prototype Board x2
M-M Wires x30
12V Adapter x1
Soldering Iron x1
Solder Wire x1

Who This Kit Is For

Designed for B.Tech ECE, EEE, and Agri-Engineering students building final-year projects or competing in Smart India Hackathon. Also suits polyhouse operators, terrace gardeners with an engineering bent, and ATL Tinkering Labs mentors conducting advanced automation workshops.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to chat with the AI companion trained on this exact circuit and code. You can also ping us on WhatsApp—we'll help you debug until the system works.

Can I use this kit to water my lawn or only potted plants?

The solenoid valves connect to any standard 12V water line, so the system works for lawns, raised beds, or greenhouse irrigation. You just need the appropriate plumbing adapters for your existing pipes.

Does the kit include water pipes and fittings?

The kit contains all electronics and sensors; plumbing components like ¾-inch solenoid valve adapters and irrigation tubing must be purchased separately from a hardware store.

How do I power the system outdoors?

The included 12V adapter runs the controller and valves. Place the Arduino and relay board in a weatherproof enclosure near an outdoor plug, and run the sensor wires to your garden beds.

Garden — Four zones of solenoid valves controlled by soil moisture sensors per zone with RTC schedule override.
