Thermal Presence Anomaly Detector Kit with Arduino Mega + Camera
Thermal Presence Anomaly Detector: Build a Surveillance System with Arduino Mega & AMG8833
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
This kit empowers you to construct a fully functional presence anomaly detector that senses body heat and movement using a high-resolution 8x8 thermal camera array. Ideal for securing server rooms, perimeter fences, or dark storage areas where conventional cameras fall short, it automatically logs a thermal snapshot to an SD card the moment an anomaly is detected, complete with a real-time clock timestamp. You will gain practical mastery over thermal data acquisition, interrupt-driven logging, and system integration in a single hands-on build.
What You'll Build
A self-contained monitoring device that scans a 64-pixel heat map continuously, triggers a buzzer alarm, and writes a timestamped thermal image to a MicroSD card whenever a human-temperature signature enters the field. The 0.96-inch OLED shows live system status, and the entire assembly fits into the provided enclosure for immediate deployment in any indoor environment.
What You'll Learn
- Interfacing the AMG8833 thermal camera over I2C and processing its 8x8 temperature array in real time
- Using a DS3231 RTC to stamp events with precise date and time, even after power cycles
- Developing firmware logic to detect presence anomalies from thermal data and trigger alarms
- Assembling a robust embedded system with power regulation, SD card logging, and physical enclosure design

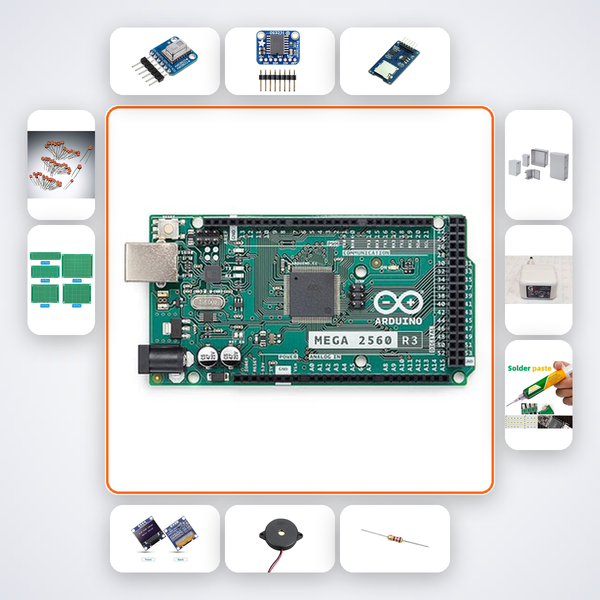

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| AMG8833 Thermal Camera | 1 |
| DS3231 RTC Module | 1 |
| MicroSD Card Module | 1 |
| 0.96in OLED Display | 1 |
| Active Buzzer | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Ceramic Capacitors | 10 |
| PCB Prototype Board | 2 |
| Enclosure Box | 1 |
| 5V 2A Power Supply Unit | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Engineered for advanced makers, this kit suits BTech and MTech students in ECE, EEE, or CSE who are tackling final-year projects in embedded vision or IoT security. It is equally valuable for cybersecurity researchers crafting custom perimeter monitoring tools, participants in the Smart India Hackathon building surveillance solutions, and professionals prototyping low-cost thermal anomaly detection for ATL Tinkering Labs or institutional workshops. Prior experience with Arduino and basic soldering is assumed.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code to launch the AI companion, which walks you through each wiring step and code block. You can also reach us on WhatsApp for direct engineering support.
Can this detector tell humans apart from pets or other heat sources?
The base firmware triggers on any thermal anomaly above ambient; the AI companion includes guidance on adjusting thresholds and filtering by heat-map footprint size to differentiate humans from small animals.
Do I need prior soldering experience?
Yes, this kit requires soldering the components onto the prototype boards. All necessary tools—a soldering iron and solder wire—are included, but you should be comfortable with basic through-hole soldering.
What is the typical detection range of the thermal camera?
The AMG8833 reliably detects human body heat up to 7 meters away indoors, depending on ambient temperature and clothing. The enclosure design and mounting angle also influence the effective field of view.
AMG8833 8x8 thermal camera detects body heat presence and movement. Logs thermal snapshots to SD on anomaly.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
