Thermal Presence Anomaly Detector Variant 8 Kit with Arduino Mega + Camera
Build a Standalone Thermal Presence Anomaly Detector with Arduino Mega and AMG8833 Camera
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
In environments where visible-light cameras fail—dark corridors, windowless server rooms, or moonless perimeters—a thermal sensor that “sees” body heat is the only reliable surveillance option. This kit guides you through constructing a wall-powered anomaly detector that uses an 8x8 infrared array to scan for human presence. The moment the thermal pattern shifts, the system captures a timestamped snapshot, writes it to an SD card, and triggers an audible alert—all without a PC after programming.
What You'll Build
A standalone security node that constantly monitors its field of view using an AMG8833 thermal camera. When a person enters or moves, the device detects the temperature change, logs the full 64‑pixel frame along with the exact time from a DS3231 real‑time clock, and sounds a buzzer. A 0.96‑inch OLED display shows the live temperature grid and system status. The entire circuit is housed in an enclosure box, ready to deploy near gates, sensitive equipment, or restricted zones.
What You'll Learn
- Interfacing the AMG8833 thermal camera via I2C and reading a 64-pixel temperature array in real time.
- Implementing background subtraction and anomaly detection on thermal data to distinguish human presence from slow ambient drift.
- Logging timestamped thermal frames to a microSD card, using the DS3231 RTC for forensic‑grade record‑keeping.
- Designing a noise‑immune circuit on a PCB prototype board, with proper decoupling and enclosure‑ready wiring.

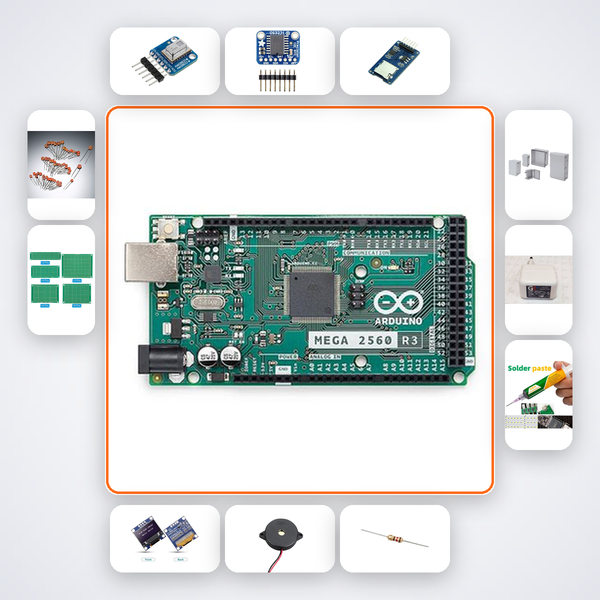

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Mega 2560 | 1 |
| AMG8833 Thermal Camera | 1 |
| DS3231 RTC | 1 |
| MicroSD Module | 1 |
| 0.96in OLED | 1 |
| Active Buzzer | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Caps | 10 |
| PCB Prototype Board | 2 |
| Enclosure Box | 1 |
| 5V 2A PSU | 1 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Advanced makers and engineers building deployable thermal surveillance—ideal for final‑year B.Tech projects in ECE or EEE at IITs, NITs, VIT, or BITS, professionals prototyping perimeter security for offices or server rooms, and Smart India Hackathon finalists needing a hardware‑centric security solution. It assumes solid Arduino proficiency and the ability to solder and read datasheets.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion via the QR code on your box — it’s trained on this kit. If you need a human touch, message us on WhatsApp; we usually reply within minutes during working hours.
Does this kit require soldering?
Yes, you’ll assemble the sensor modules, resistors, capacitors, and buzzer onto the provided PCB prototype board. The kit includes a soldering iron and solder wire so you can start immediately.
Can this detector be used outdoors?
The included enclosure protects against indoor dust and casual contact. For outdoor use, you may need additional sealing against rain and moisture, but the electronics are well-suited for indoor surveillance of gates, corridors, or server rooms.
How far away can it detect a person?
With the AMG8833’s 8x8 pixel array and proper threshold tuning, you can reliably detect a human heat signature at 5–7 metres in a typical room. Detection range depends on ambient temperature and the subject’s heat contrast.
AMG8833 8x8 thermal camera detects body heat presence and movement. Logs thermal snapshots to SD on anomaly.
What's in this kit
Choose your assembly option:
- Soldering Kit — 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
- Breadboard Combo — 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
