Ornithopter Mechanism Kit: Arduino Uno, Motor, Tail Servo

SKU: CDN-KIT-0055-CL-SLD Brand: Compoden Category: Electronics > Robotics & Motion > Project Kits
Rs. 1,370.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Ornithopter Mechanism Kit: Arduino Uno, Motor, Tail Servo — an advanced-level kit.

Ornithopter Mechanism Kit: Arduino Uno, Motor, Tail Servo

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 6–8 Hours Skill: Mechatronics & Control Systems

Wings, frame and crank parts are not included.

Kit at a glance

What you build: The drive electronics for a flapping-wing mechanism: a 12V DC motor through an L298N driver turns the wing crank, an SG90 servo tilts the tail, and an HC-05 module lets you set the flap speed from your phone. A 7.4V LiPo and an LM2596 buck converter power it.

What's in the box

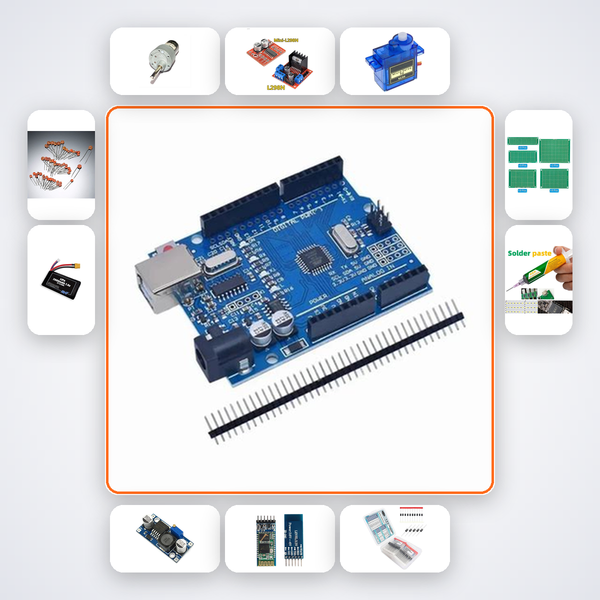

  • Arduino Uno R3
  • DC Motor 12V
  • L298N Driver
  • SG90 Servo
  • LM2596 Buck Converter
  • HC-05 Bluetooth
  • 1N4007 Diode × 5
  • 100nF Caps × 5
  • 7.4V LiPo 1300mAh
  • PCB Prototype Board × 2
  • Soldering Iron
  • Solder Wire

Add Bluetooth control and a servo for tail pitch, perfect for final-year projects or deep technical curiosity.

What You'll Build

The drive electronics for a flapping-wing mechanism: a 12V DC motor through an L298N driver turns the wing crank, an SG90 servo tilts the tail, and an HC-05 module lets you set the flap speed from your phone. A 7.4V LiPo and an LM2596 buck converter power it.

What You'll Learn

  • Design and assemble a four-bar crank-rocker mechanism to convert DC motor rotation into symmetric wing flapping
  • Interface an L298N driver to regulate a 12V motor under Arduino PWM control for variable thrust
  • Program a PID-like pitch stabilisation using servo feedback and a Bluetooth HC-05 module for mobile command
  • Integrate power management with a buck converter and flyback diodes, and learn soldering skills on prototype PCBs

Kit Contents

Component Quantity
Arduino Uno R3 1
DC Motor 12V 1
L298N Driver 1
SG90 Servo 1
LM2596 Buck Converter 1
HC-05 Bluetooth 1
1N4007 Diode 5
100nF Caps 5
7.4V LiPo 1300mAh 1
PCB Prototype Board 2
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This advanced kit is crafted for B.Tech students in ECE, EEE, or Mechatronics who need a capstone project with real mechanical motion, control loops, and wireless integration. If you can read a schematic and solder, you're ready.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code for AI chat that knows the schematic and common pitfalls. WhatsApp support available too.

Does the kit include the mechanical frame for the wing structure?

The kit includes electronics only. Fabricate wing/fuselage from balsa or 3D-printed PLA; our AI guide suggests designs.

Can I control the ornithopter from my phone?

Yes, HC-05 pairs with any Bluetooth serial app for throttle, frequency, and pitch control.

Is soldering required, and what skill level is needed?

Yes, soldering is required. The iron and wire are included; the guide walks you through each joint. Prior experience recommended.

Crank-rocker mechanism driven by DC motor converts rotation to flapping. Tail servo provides pitch control.

What's in this kit

Do you deliver across India?

Yes. We ship Ornithopter Mechanism Kit: Arduino Uno, Motor, Tail Servo across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Orders ship in 3-7 days.

What payment options are available for Ornithopter Mechanism Kit: Arduino Uno, Motor, Tail Servo?

We accept UPI, all major debit and credit cards, and Cash on Delivery (COD) available.

Does it include the wings and frame?

No. The kit is the electronics and drive. You build the crank, the wings and the frame from your own materials.

How do I charge the LiPo?

With a 2S LiPo balance charger, which is not in the box.

Built and shipped from Compoden, with UPI and cards, plus COD available.
