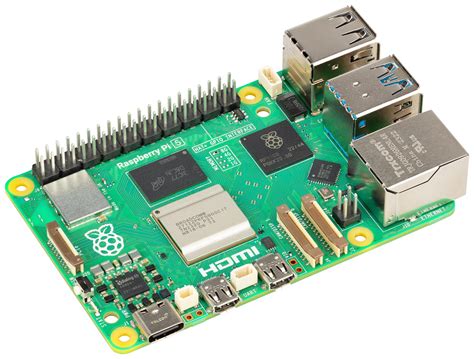

Raspberry Pi 5 Model B – 4GB RAM, Quad-Core 2.4GHz SBC
The Raspberry Pi 5 Model B is the latest iteration of the popular single-board computer, featuring a quad-core ARM Cortex-A76 processor, 4GB of LPDDR4X RAM, and support for dual 4K displays. It is ideal for embedded systems, home servers, media centers, and learning programming. With native Gigabit Ethernet, USB 3.0, and dual-band Wi-Fi, it offers desktop-class connectivity in a compact form factor.
Key Specifications
| Specification | Value |
|---|---|
| Processor | Broadcom BCM2712, Quad-core Cortex-A76 @ 2.4GHz |
| RAM | 4GB LPDDR4X |
| GPU | VideoCore VII, OpenGL ES 3.1, Vulkan 1.2 |
| Connectivity | 2.4/5GHz Wi-Fi 5, Bluetooth 5.0, Gigabit Ethernet |
| Ports | 2× micro-HDMI (4Kp60), 2× USB 3.0, 2× USB 2.0, 40-pin GPIO, MIPI DSI/CSI |
| Power | 5V DC via USB-C (5V/5A recommended) |
What You Can Build With This
- Home media server using Plex or Kodi
- Retro gaming console with RetroPie
- IoT weather station with environmental sensors
- Network-attached storage (NAS) with external USB drives
Compatibility
Compatible with Raspberry Pi OS, Ubuntu, and other ARM Linux distributions. Supports HATs and GPIO accessories without modification. Works with standard 5V USB-C power supplies and micro-HDMI monitors.
Wiring Notes
The GPIO pins use 3.3V logic: never connect a 5V signal to a GPIO pin, or you can damage the board. Use a 5V/5A USB-C adapter for stable operation under load. The 40-pin header is backward compatible with previous Raspberry Pi models.
What power supply does the Raspberry Pi 5 need?
5V DC through USB-C. A 5V/5A adapter is recommended for stable running under load; the Official 27W USB-C PD Power Supply for Raspberry Pi 5 is the matching option.
Which cable do I need to connect a monitor to the Raspberry Pi 5?
The Pi 5 has two micro-HDMI ports, each supporting 4Kp60. Use a micro-HDMI to HDMI cable or a micro HDMI to HDMI adaptor.
Does the Pi 5 need active cooling?
Under sustained load without cooling, the Pi 5 throttles its speed to stay cool. The Official Raspberry Pi 5 Active Cooler is the recommended fix; an official case with a fan also works.
Will my old HATs and GPIO projects work on the Raspberry Pi 5?
The 40-pin GPIO header is backward compatible with earlier Raspberry Pi models. GPIO logic is 3.3V, so never connect a 5V signal to a GPIO pin. It runs Raspberry Pi OS, Ubuntu and other ARM Linux distributions.
Is this compatible with Arduino?
The Raspberry Pi is a full computer, not a microcontroller. It can communicate with Arduino via USB, I2C, or SPI, but operates at 3.3V logic, so use level shifters if connecting to 5V Arduino pins.
Can it run Windows?
Windows is not officially supported on the Raspberry Pi 5. Use Raspberry Pi OS or Ubuntu for full functionality.
What else should I buy with the Raspberry Pi 5?
A microSD card for the operating system, the 27W USB-C power supply, a micro-HDMI cable or adaptor, and the Active Cooler or a case with a fan. For faster storage, the Pi 5 also takes an NVMe SSD through a PCIe to M.2 board.
