Raspberry Pi 5 Robot Arm Calibration Kit - Footfall Camera
Raspberry Pi 5 Retail Footfall Camera Arm - Automatically Calibrates Its Own Joints
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.
In a retail store, foot traffic patterns reveal where customers stop, skip, or dwell - but manually calibrating a camera arm to track these flows is tedious. This kit lets you build a Raspberry Pi 5-powered 6DOF robot arm that uses its own Pi Camera Module 3 to measure joint positions and automatically correct its kinematic model. No more guesswork; the arm learns its own geometry by watching itself move.
What You'll Build
A fully assembled 6DOF robot arm with a camera mounted on the end effector. The arm sweeps through a predefined sequence while capturing markers in its field of view. You'll run a Python calibration routine that recalculates link lengths and joint offsets, giving you a self-correcting, high-precision platform. Deploy it as a retail footfall camera that pans and tilts to count shoppers entering different aisles.
What You'll Learn
- Implement closed-loop camera calibration for a robotic arm using visual feedback
- Compute forward and inverse kinematic models and refine them when mechanical tolerances slip
- Integrate Raspberry Pi 5 with OpenCV and servo control via the PCA9685 driver
- Set up high-speed image logging on an NVMe SSD using the Pi 5 M.2 HAT+
Kit Contents
| Component | Quantity |
|---|---|
| Raspberry Pi 5 4GB | 1 |
| Pi Camera Module 3 | 1 |
| Servo Driver PCA9685 | 1 |
| MG996R Servo | 6 |
| Robot Arm 6DOF Kit | 1 |
| NVMe SSD 256GB | 1 |
| Pi 5 M.2 HAT+ | 1 |
| USB-C PSU | 1 |
| M-M Wires | 20 |
Why Buy This Kit Instead of Sourcing Parts Separately
| Factor | Sourcing Separately | Compoden Kit |
|---|---|---|
| Compatibility checks | You verify every part | Pre-tested as a system |
| Build support | Forums and scattered tutorials | AI companion trained on this exact project |
| Time to first working build | Days of debugging | Hours, with step-by-step guidance |
| Shipping coordination | Multiple sellers, multiple delays | One shipment from Bengaluru in 3-5 days |
Who This Kit Is For
Ideal for B.Tech ECE/EEE students tackling robotics or IoT projects, Smart India Hackathon teams developing retail analytics solutions, and CBSE Class 12 students with a strong interest in AI and computer vision. ATL Tinkering Labs can use it to demonstrate advanced closed-loop control and camera-based calibration.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code on the box to open your AI companion, trained on every step of this kit. You can also reach us on WhatsApp for direct help.
Do I need prior experience with robot arms?
You'll be most comfortable if you've worked with Python and basic electronics, but the calibration logic is explained step by step. The AI companion walks you through the kinematic math.
Can this be used for actual retail footfall counting?
Yes - once calibrated, the arm can pan and tilt to monitor multiple entry points. The kit includes a starting script; you can expand it with your own analytics or integrate with external dashboards.
Is the Raspberry Pi 5 necessary, or can I use a Pi 4?
The kit is optimized for the Pi 5's faster processing and native M.2 interface. Using a Pi 4 would require a different HAT and may not deliver the same image-capture speed; we haven't tested that configuration.
Retail Analytics - Robot arm on Pi 5 uses camera to measure its own joint positions and correct kinematic model - automatic calibration.

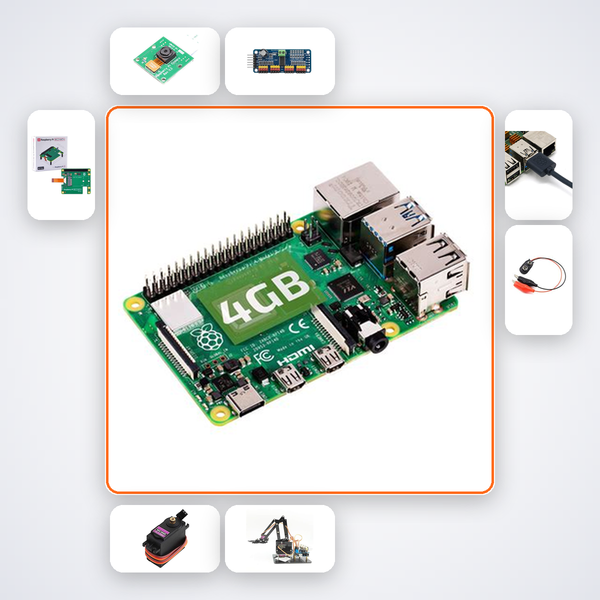

What's in this kit
