Arduino Uno Prototype Shield with Mini Breadboard – SYB-170 Proto Shield
Arduino Uno Prototype Shield with Mini Breadboard – SYB-170 Proto Shield

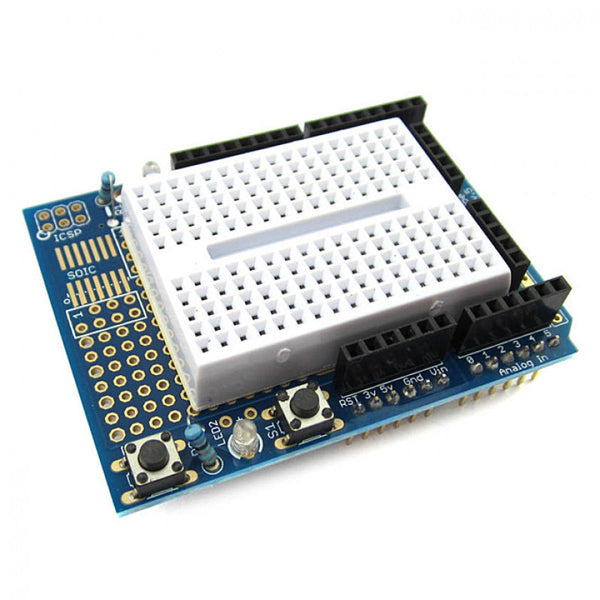

The SYB-170 Proto Shield is a prototyping expansion board designed for the Arduino Uno that includes a built-in 170-point mini breadboard. It simplifies circuit building by providing a stable platform for components and connections directly on top of your Arduino. This shield passes through all Arduino pins via stackable headers, allowing you to access every I/O while prototyping.
Key Specifications
| Specification | Value |
|---|---|
| Compatibility | Arduino Uno R3 (and similar pinout boards) |
| Integrated Breadboard | 170 tie-point mini breadboard (SYB-170) |
| Dimensions | 68.6 mm x 53.4 mm (standard shield size) |
| Operating Voltage | 3.3V–5V (supplied by Arduino) |
| Headers | Stackable long-pin male/female headers for pass-through |
| Additional Features | Reset button, power LED, extra solder pads, ICSP header access |
What You Can Build With This
- Push-button LED control with debounce circuitry
- Temperature and humidity monitor using DHT11 sensor and LCD
- Servo motor positioner with potentiometer input
- Basic audio tone generator with passive buzzer
Compatibility
This shield is made for the Arduino Uno R3 and works with any board sharing the same I/O layout, such as the Arduino Leonardo. For boards like the Mega 2560, the shield physically fits only the Uno-compatible header section; some pins remain unconnected. It operates at 5V logic and pairs well with common sensors, displays, and motor drivers.
Wiring Notes
No external wiring is needed—simply stack the shield onto your Arduino Uno. The breadboard’s power rails can be connected to the Arduino’s 5V and GND via jumper wires for easy access. Ensure all components are placed firmly to avoid intermittent connections on the breadboard.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Mega?
The shield fits Arduino Uno footprint and will not stack securely on a Mega. You can use jumper wires to connect the shield’s pins to the Mega’s corresponding I/O headers.
Can I solder SMD components on this shield?
The shield provides through-hole pads for standard components. Small SMD parts can be soldered with care, but it is not optimized for surface-mount designs.
Does the breadboard come detached or fixed?
The mini breadboard is pre-mounted and fixed onto the shield with adhesive. It is not intended to be removed.
