LoRa Long Range Sensor Telemetry
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
LoRa Long-Range Telemetry Kit: 2× ESP32, RA-02, DHT22 — an expert-level kit.
LoRa Long-Range Telemetry Kit: 2× ESP32, RA-02, DHT22
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Kit at a glance
What you build: A LoRa telemetry pair: one ESP32 with an RA-02 radio, a DHT22 and a BMP280 sends readings to a second ESP32 with an RA-02, up to around a kilometre in open ground, and the receiver uploads them over Wi-Fi. Learn spreading factor, range and power trade-offs.

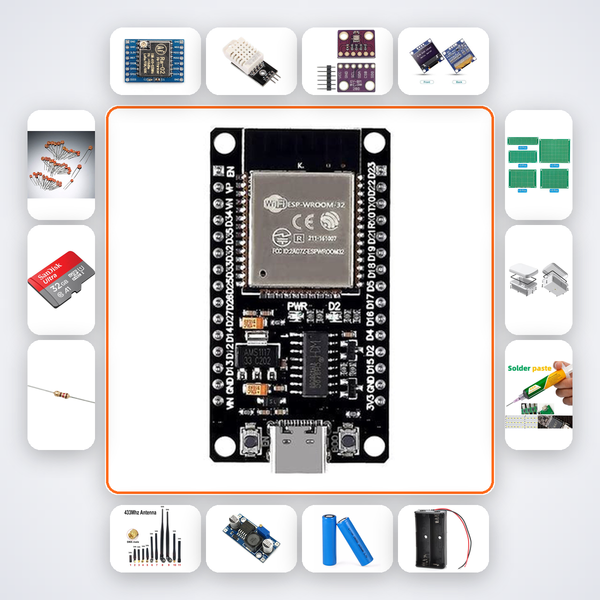

What's in the box
- ESP32 Dev Board × 2
- RA-02 LoRa SX1278 × 2
- DHT22 × 2
- BMP280
- 0.96in OLED × 2
- 433MHz Antenna × 2
- LM2596 Buck Converter × 2
- 18650 Cell × 2
- 18650 Holder × 2
- 100nF Caps × 10
- 10µF Caps × 5
- 4.7kΩ Resistors × 5
- 10kΩ Resistors × 10
- PCB Prototype Board × 4
- Waterproof Enclosures × 2
- Soldering Iron
- Solder Wire
Power: two 18650 cells included.
Skill level: Advanced (8-10 hours).
Frequently asked questions
Is it LoRaWAN?
No. It's point-to-point LoRa between your two boards.
Is 433MHz allowed in India?
Low-power use in the 433-434.79MHz band is licence-exempt.
In farms that stretch for acres, warehouses that block WiFi, or pipelines that run for kilometres, you don't have the luxury of a constant internet connection at every sensor point. This kit lets you deploy two battery-powered LoRa nodes that transmit temperature, humidity, and pressure data over 1km without relying on WiFi or a cellular network. One ESP32 acts as a gateway, picking up the LoRa packets and forwarding them straight to your cloud dashboard — perfect for remote environmental monitoring, precision agriculture, or industrial sensor telemetry from a central location.
What You'll Build
You'll assemble two independent LoRa transmitter nodes, each with its own DHT22 sensor and a shared BMP280 on one node, plus an OLED display to view readings locally. The nodes send sensor data via SX1278 radio to a receiver ESP32 that logs, displays, and pushes the payload to a cloud endpoint over WiFi. By the end, you'll have a fully functional, long-range telemetry network that you can scale with additional nodes, all without writing a single HTTP request on the sensor side.
What You'll Learn
- Configure and range-test SX1278 LoRa modules for reliable 1km+ communication in Indian outdoor conditions
- Integrate DHT22 and BMP280 sensors into battery-optimised ESP32 nodes with deep sleep
- Design a multi-node star network with collision avoidance using simple LoRa packet addressing
- Build an ESP32 gateway that receives LoRa frames and uploads structured JSON to a cloud platform like a cloud chart service or a cloud database
Kit Contents
| Component | Quantity |
|---|---|
| ESP32 Dev Board | 2 |
| RA-02 LoRa SX1278 | 2 |
| DHT22 | 2 |
| BMP280 | 1 |
| 0.96in OLED | 2 |
| 433MHz Antenna | 2 |
| LM2596 Buck Converter | 2 |
| 18650 Cell | 2 |
| 18650 Holder | 2 |
| 100nF Caps | 10 |
| 10µF Caps | 5 |
| 4.7kΩ Resistors | 5 |
| 10kΩ Resistors | 10 |
| PCB Prototype Board | 4 |
| Waterproof Enclosures | 2 |
| Soldering Iron | 1 |
| Solder Wire | 1 |
Who This Kit Is For
This advanced kit is built for B.Tech ECE/EEE students tackling Smart India Hackathon challenges, IoT researchers at IITs and NITs prototyping low-power wide-area networks, and agritech or industrial automation engineers who need to deploy long-range sensor nodes without relying on cellular modules. If you're already comfortable with Arduino IDE, soldering, and basic power management and want to move beyond single-board WiFi projects, you'll find the right depth here.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Open the AI companion from the QR code. It knows this exact kit's wiring, code, and common pitfalls. If you need a human, message us on WhatsApp — we typically reply.
Can I increase the range beyond 1km?
Yes, the SX1278 can reach 3-5km in clear line of sight with the right antenna and spreading factor settings. The AI companion includes a range-tuning guide specific to Indian terrain.
Do I need a LoRaWAN network server?
No, this project uses point-to-point LoRa communication. The gateway receives raw packets directly and forwards them to the cloud — no The Things Network or gateway software required.
Can I add more sensor nodes later?
Absolutely. The packet protocol is simple to extend. You can duplicate a node circuit, assign a new address, and the gateway will handle additional IDs without code changes on the receiver side.
Two LoRa nodes send sensor data 1km+ range without WiFi. Gateway uploads to cloud via ESP32 WiFi.
What's in this kit
- ESP32 Dev Board x2
- RA-02 LoRa SX1278 x2
- DHT22 x2
- BMP280
- 0.96in OLED x2
- 433MHz Antenna x2
- LM2596 Buck Converter x2
- 18650 Cell x2
- 18650 Holder x2
- 100nF Caps x10
- 10µF Caps x5
- 4.7kΩ Resistors x5
- 10kΩ Resistors x10
- PCB Prototype Board x4
- Waterproof Enclosures x2
- Soldering Iron
- Solder Wire
