Organ Box Kit with Arduino Uno + Servo
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Organ Box Kit with Arduino Uno + Servo — a beginner-level build.
Build a Hand-Crank Music Box with Arduino Uno, an A3144 Hall Sensor and a Servo
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Turn a crank and a tune plays, faster as you crank faster and pausing when you stop. An A3144 Hall sensor counts each turn of the crank, the Arduino Uno steps through the melody, and a passive buzzer plays the notes while a servo taps the rhythm.
What You'll Build
You build a crank handle from your own materials and fix a small magnet (not included) to it so it passes the A3144 once per turn. The sensor, the passive buzzer and the SG90 servo connect to the Uno on the breadboard. The sketch plays the next notes of the melody on each pulse and moves the servo arm on the beat.
What You'll Learn
- Detecting a rotating magnet with an A3144 Hall sensor
- Playing notes with tone() on a passive buzzer
- Storing a melody as arrays of notes and lengths
- Syncing a servo movement to the music

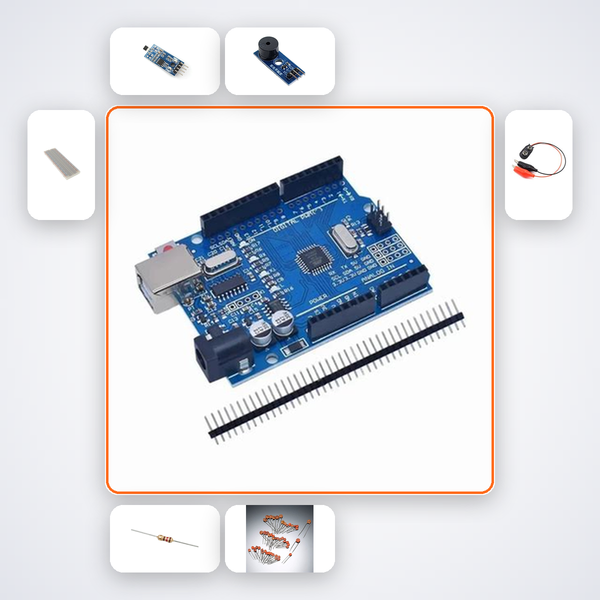

Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 CH340G | 1 |
| SG90 9g Micro Servo Motor | 1 |
| A3144 Hall Effect Sensor | 1 |
| Passive Buzzer Module | 1 |
| Resistor Variety Pack - 10 Values, 1/4W Carbon Film | 1 |
| 400-point solderless breadboard | 1 |
| Dupont Jumper Wire Kit (M-M, M-F, F-F, 20cm, 22AWG) | 1 |
Who This Kit Is For
Beginners who enjoy music and making things move, and makers looking for a playful build for an exhibition.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
Is a magnet included?
No. Fix a small magnet from your own parts to the crank so it passes the sensor once per turn.
Can I change the tune?
Yes. The melody is a list of notes in the sketch. Write your own or copy a simple song.
Why a passive buzzer?
A passive buzzer plays different pitches from the Arduino's tone() function. An active buzzer only plays one tone.
Arduino Uno hand-crank music box: an A3144 Hall sensor counts crank turns, a passive buzzer plays the tune and a servo taps the beat.
