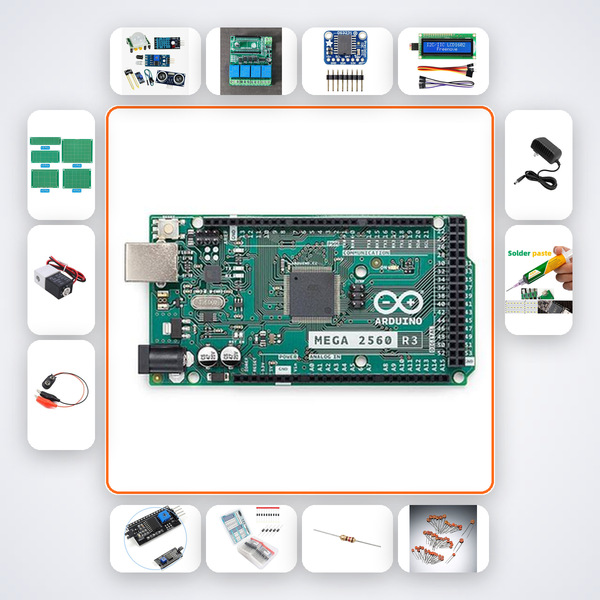

Precision Drip Irrigation Controller Kit with Arduino Mega + Sensor

SKU: CDN-KIT-0622-CL-SLD Brand: Compoden Category: Electronics > Agriculture & Smart Farming > Project Kits
Rs. 2,390.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Precision Drip Irrigation Controller Kit with Arduino Mega + Sensor — an advanced-level kit.

Precision Drip Irrigation Controller Kit — Automate 4-Zone Farming with Arduino Mega & Sensors

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 5-6 hrs Skill: Multi-sensor automation logic and actuator control

Kit at a glance

What you build: A four-zone drip controller: each zone has its own soil moisture sensor, its own threshold and its own 12V solenoid valve, switched by an Arduino Mega through a 4-channel relay. A DS3231 schedule can override the sensors, for example to water only in the early morning, and the 16x2 LCD shows every zone.

What's in the box

  • Arduino Mega 2560
  • Soil Moisture Sensor × 4
  • 4-ch Relay Module
  • DS3231 RTC
  • 16x2 LCD
  • I2C Backpack
  • 1N4007 Diode × 10
  • 10kΩ Resistors × 10
  • 100nF Caps × 10
  • PCB Prototype Board × 2
  • 12V Solenoid Valve × 4
  • M-M Wires × 30
  • 12V Adapter
  • Soldering Iron
  • Solder Wire

Power: 12V adapter included. Pipes and drip fittings are not included.

Skill level: Advanced (5-6 hours).

Frequently asked questions

Can all four valves open at once?

Check the 12V adapter's rating covers all four; staggering the zones avoids the problem.

Do the valves need water pressure?

Many solenoid valves need some pressure to open fully. A raised tank or a mains line helps.

Water four separate crop zones independently — each with its own soil moisture sensor, solenoid valve, and user-defined threshold — while a real-time clock overrides sensor decisions to prevent watering during heat, rain, or night. This kit turns an Arduino Mega into a farm-grade controller that reads soil conditions live and operates exactly like a commercial precision irrigation system, only you build it from the ground up.

What You'll Build

You’ll assemble a four-channel drip irrigation brain that continuously monitors moisture in four soil beds, compares readings to programmed thresholds, and opens or closes individual 12V solenoid valves through a relay module. A 16x2 LCD shows zone status and current RTC time, while scheduled overrides ensure your crops get water only at the right moments — even if a sensor fails.

What You'll Learn

  • Interfacing multiple analog soil moisture sensors with Arduino Mega and mapping threshold logic for four independent zones
  • Driving 12V solenoid valves safely using a 4-channel relay module, flyback diodes, and proper power isolation
  • Implementing a DS3231 real-time clock to schedule irrigation windows that override sensor-based decisions
  • Designing a modular embedded system with user calibration, zone status display on an LCD, and debounced decision-making

Kit Contents

Component Quantity
Arduino Mega 2560 1
Soil Moisture Sensor 4
4-ch Relay Module 1
DS3231 RTC 1
16x2 LCD 1
I2C Backpack 1
1N4007 Diode 10
10kΩ Resistors 10
100nF Caps 10
PCB Prototype Board 2
12V Solenoid Valve 4
M-M Wires 30
12V Adapter 1
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This kit targets B.Tech ECE/EEE and agricultural engineering students building capstone projects or Smart India Hackathon prototypes. It’s equally suited for agritech researchers at IITs, NITs, and state agricultural universities who need a hands-on, customizable irrigation controller to study sensor-based water management and actuator control under field-like conditions.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code to start a chat with the AI companion trained on this project; it offers step-by-step debugging and wiring checks. If you need human help, our WhatsApp support team responds.

Can I power the valves and Arduino separately?

Yes. The 12V adapter drives the solenoid valves through the relay module’s high-power side. The Arduino Mega can be powered via USB or an external supply. Use the provided diodes and ensure the relay module’s JD-VCC jumper is set correctly to isolate the logic side.

How do I set individual moisture thresholds for each zone?

The AI companion provides pre-written Arduino code where you define a threshold variable per zone. You can adjust these values after observing real-time sensor readings displayed on the 16x2 LCD, tailoring watering to each crop’s needs.

Can I integrate weather data or IoT later?

Absolutely. The Arduino Mega has multiple hardware serial ports and spare digital pins. The AI companion outlines how to add a GSM, Wi-Fi, or LoRa module to push soil data to the cloud or pull weather forecasts, turning this standalone kit into an IoT-enabled farm station.

Four soil zones each with moisture sensor, solenoid valve relay, and individualised threshold. RTC schedule override.
