Server Room and Cloud Height Logger Kit with Arduino Mega + BPW34 Photodiode

SKU: CDN-KIT-2922-SLD Brand: Compoden Category: Electronics > Weather & Environment > Project Kits
Rs. 2,090.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Server Room and Cloud Height Logger Kit with Arduino Mega + BPW34 Photodiode — an expert-level kit.

Server Room Temperature & Cloud Height Monitor Kit v4 – Arduino Mega‑Powered Data Centre Environment Logger

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Advanced Build Time: 15-20 hours Skill: Time‑of‑flight laser ranging & environmental data fusion

Data centre cooling efficiency depends as much on outdoor weather as it does on internal heat loads. This kit empowers you to build a dual‑function instrument that tracks server room temperature and humidity while simultaneously measuring cloud base height with a pulsed IR laser ceilometer. The BMP280 pressure sensor corrects the laser return time for air density, yielding ceiling readings accurate enough to inform free‑cooling economizer decisions. Whether you are a facility engineer or an advanced maker exploring industrial IoT, this project delivers a field‑grade monitoring tool.

What You'll Build

You will assemble a wall‑mounted logging station that combines a time‑of‑flight laser range finder with precision temperature, humidity, and barometric sensors. The device displays real‑time indoor conditions and cloud ceiling altitude on a crisp OLED, timestamps every data point with a DS3231 RTC, and archives readings to a MicroSD card. By the end of the 15‑hour build, you will own a self‑contained instrument that provides the data points needed to optimise data centre airflow and predict outdoor cooling potential.

What You'll Learn

  • Pulse‑based IR laser ranging: encoding a 940nm LED pulse, detecting the return with a BPW34 photodiode, and conditioning the signal through an LM358 op‑amp chain to extract time‑of‑flight
  • Barometric compensation in laser measurements using BMP280 pressure data to correct optical path length for air density
  • I²C communication for the BMP280 and OLED, one‑wire protocol for the DHT22, and SPI for the MicroSD module on the Arduino Mega
  • Data logger firmware design with RTC‑stamped CSV output, power‑loss‑safe file handling, and real‑time display updates

Kit Contents

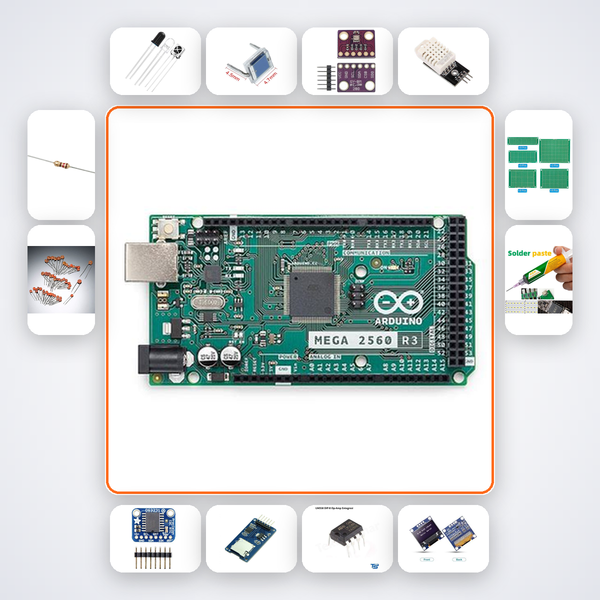

Component Quantity
Arduino Mega 2560 1
IR LED 940nm High Power 1
IR Photodiode BPW34 1
BMP280 1
DHT22 1
DS3231 RTC 1
MicroSD Module 1
LM358 Op‑Amp 2
0.96in OLED 1
100Ω Resistors 5
1kΩ Resistors 5
10kΩ Resistors 10
100nF Capacitors 10
PCB Prototype Board 3
Soldering Iron 1
Solder Wire 1

Who This Kit Is For

This advanced kit is designed for B.Tech ECE and EEE students working on green data centre or industrial IoT capstone projects at IITs, NITs, VIT, or BITS Pilani. It is equally suitable for Smart India Hackathon teams tackling smart building challenges and for data centre facility engineers who want a customised, expandable environment logger. Prior experience with Arduino IDE and soldering is expected; the included soldering iron and PCB boards let you professionalise the build from the first joint.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Open the AI companion directly from your phone for interactive, step‑by‑step debugging tuned to this kit. If you need human help, reply on WhatsApp and we'll diagnose together.

How does the laser ceilometer measure cloud height?

A 940nm IR pulse is fired upward; the BPW34 photodiode catches the backscatter from cloud droplets. The Arduino measures the time of flight, and the BMP280 pressure reading corrects for air density. Firmware converts this into a ceiling altitude displayed in metres.

Can I log data continuously for weeks?

Yes. The DS3231 RTC timestamps every entry, and the MicroSD module stores months of CSV data. You can set logging intervals from 1 second upward and swap SD cards without rebooting.

Do I need an external power supply?

The kit can run off a standard 9‑12V DC adaptor (not included) or a 7.4‑12V Li‑Po battery connected to the Arduino Mega’s barrel jack or Vin pin, giving you flexibility for rooftop or server rack installation.
