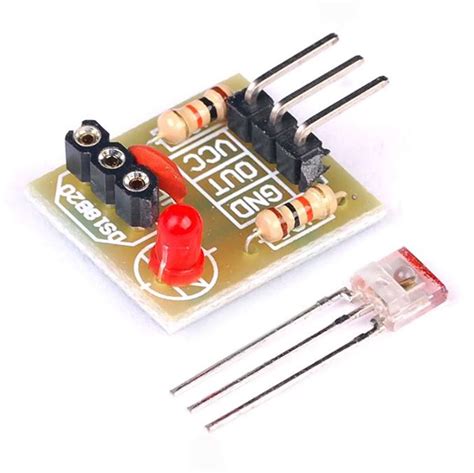

Laser Receiver Sensor Module ā Detects 650nm Laser Beam
The Laser Receiver Sensor Module is a sensitive phototransistor-based detector that outputs a digital signal when it detects a laser beam. Primarily used in security systems, laser tripwires, and optical communication projects. Its quick response and easy interface make it a reliable choice for DIY electronics.
Key Specifications
| Specification | Value |
|---|---|
| Operating Voltage | 3.3Vā5V DC |
| Detection Wavelength | 650nm (red laser) |
| Output Type | Digital (LOW when beam detected) |
| Detection Range | Up to 10m with 5mW laser |
| PCB Dimensions | 15mm Ć 10mm |
| Output Indicator | LED illuminates on detection |
What You Can Build With This
- Laser tripwire security alarm system
- Optical communication link for data transfer
- Object counter using a light barrier
- Laser harp musical instrument
Compatibility
This module works with any microcontroller that has a digital input, including Arduino Uno, Nano, ESP32, and Raspberry Pi. It supports 3.3V and 5V logic levels. A common pairing is the KY-008 laser transmitter module for a complete optical setup.
Wiring Notes
Connect VCC to 5V, GND to GND, and OUT to a digital pin. If the signal is unstable, add a 10kĪ© pull-up resistor between OUT and VCC. Shield the sensor from ambient light for reliable operation.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino?
Yes, the module operates at 5V and provides a digital output that can be read by any Arduino digital pin. Simply connect VCC to 5V, GND to GND, and OUT to a digital input.
Can it detect any laser color?
It is optimized for 650nm red lasers, which are the most common. It may work with other visible wavelengths, but sensitivity is highest in the red spectrum.
How far can it detect a laser?
With a standard 5mW red laser pointer, the detection range is up to 10 meters in a straight line. For longer distances, use a higher power laser.
