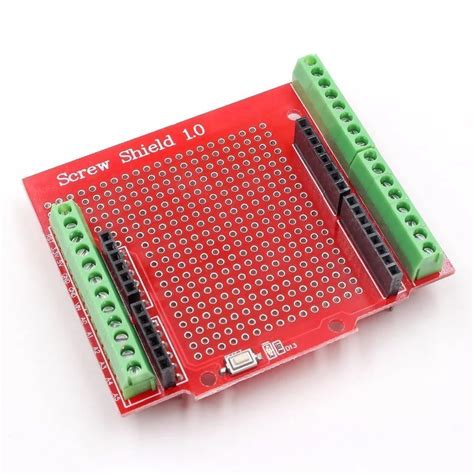

Proto Screw Shield 1.0 for Arduino Uno - Screw Terminal Prototyping
Proto Screw Shield 1.0 for Arduino Uno – Screw Terminal Prototyping
The Proto Screw Shield 1.0 is a prototyping expansion board for Arduino Uno that replaces breadboards with secure screw terminals. It provides easy, solderless connections for wires, sensors, and actuators, making your projects more reliable and portable. With a built-in reset button, LED indicator, and dedicated prototyping area, it's perfect for both beginners and experienced makers.
Key Specifications
| Specification | Value |
|---|---|
| Compatible Board | Arduino Uno R3 and compatible |
| Terminal Type | Screw terminals for all digital I/O, analog, power pins |
| Additional Features | Reset button, LED on pin 13, power indicator |
| Prototyping Area | Standard 0.1" pitch through-hole matrix |
| Dimensions | 69 x 53 mm (standard Uno shield size) |
| Weight | ~25g |
What You Can Build With This
- Permanent sensor station for temperature and humidity logging
- Motor control panel with easy wire changes for robotics
- Home automation relay board without messy wiring
- Educational trainer board for teaching electronics
Compatibility
This shield is designed for Arduino Uno R3 and compatible boards like Genuino Uno, Funduino Uno, etc. It stacks directly onto the board headers, providing screw terminals for all pins. Works with 5V system voltage. Not directly compatible with Mega or Leonardo without adaptation.
Wiring Notes
Insert wires into the screw terminals and tighten gently. Maximum terminal wire gauge: 18 AWG. For the prototyping area, solder components as needed, or use extended pin headers to avoid damaging the shield pads. The reset button is connected to the Arduino's reset line.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Nano?
No, the Proto Screw Shield 1.0 is designed for Arduino Uno R3 footprint. For Arduino Nano, you would need a shield with a different pin layout.
Can I use this to power external motors?
Yes, you can connect motor driver modules via the screw terminals. Ensure you supply adequate power through appropriate pins and follow motor driver specifications.
Do I need to solder anything?
No soldering is required for wire connections. However, the prototyping area may require soldering if you add through-hole components. The shield itself works plug-and-play.
