Screw Shield V2 Terminal Expansion for Arduino Uno | Compoden

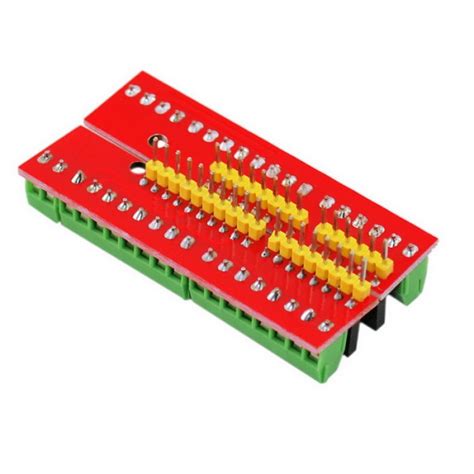

Screw Shields V2 Terminal Expansion Board for Arduino Uno
The Screw Shields V2 Terminal Expansion Board is a direct plug-on shield for the Arduino Uno that brings all I/O pins to secure screw terminals. It eliminates the need for jumper wires on breadboards, making your projects more reliable and permanent. Perfect for prototyping and semi-permanent installations, it ensures connections stay firm even in high-vibration environments.
Key Specifications
| Specification | Value |
|---|---|
| Compatibility | Arduino Uno R3, Duemilanove, and clones with Uno pinout |
| Terminal Type | Screw terminals (3.5mm pitch) |
| I/O Terminals | 14 digital (D0-D13), 6 analog (A0-A5) |
| Power Terminals | 5V, 3.3V, GND, Vin |
| Max Terminal Rating | 30V DC, 2A per terminal |
| Dimensions | 68mm x 53mm x 20mm |
What You Can Build With This
- Home automation system using relays and sensors
- Environmental data logger with SD card and multiple sensors
- Robotics controller for motor drivers and servos
- Educational demonstration board for Arduino I/O
Compatibility
Designed for the Arduino Uno R3, this shield also fits the Duemilanove and most third-party boards with the standard Uno header layout. It will physically connect to an Arduino Mega 2560, but only the Uno-compatible pins (D0-D13, A0-A5) are broken out to terminals. The shield can be stacked with other shields if you use extended pin headers.
Wiring Notes
Simply press the shield onto the Arduino Uno, ensuring all pins align. Insert wires into the screw terminals and tighten firmly. For power, use the Vin terminal if supplying voltage through the Arduino's barrel jack, or use the 5V/GND terminals for logic-level peripherals. Do not exceed the current rating per terminal to avoid damage.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Mega?
It will physically fit, but only the Uno-compatible pins (D0-D13, A0-A5) are available. Additional Mega pins are not connected.
Can I use it for high-current devices?
The screw terminals are rated for up to 2A each, suitable for sensors and small relays. For higher currents, use a dedicated high-current shield or external drivers.
Does it include a reset button?
Yes, the V2 version has an onboard reset button for easy programming and restart.
