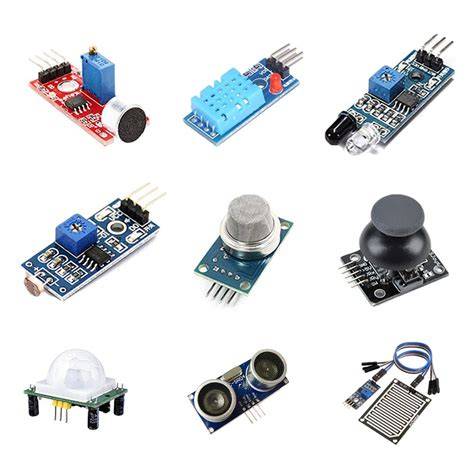

9 in 1 Arduino Sensor Kit - Ultrasonic, PIR, IR, DHT11, MQ2, LDR, Sound, Rain
This 9-in-1 sensor kit bundles the most commonly used environmental and motion sensors for Arduino prototyping. It includes ultrasonic distance, passive infrared motion, infrared obstacle avoidance, temperature and humidity (DHT11), flammable gas (MQ2), light-dependent resistor, sound detection, and rain detection modules. Perfect for building home automation, security, and environmental monitoring projects on a single set of boards.
Key Specifications
| Specification | Value |
|---|---|
| Sensor Types | HC-SR04 Ultrasonic, HC-SR501 PIR, IR Obstacle, DHT11 Temp/Humidity, MQ2 Gas, LDR, Sound, Rain, IR Receiver |
| Operating Voltage | 3.3V – 5V DC (module-dependent) |
| Interface | Digital (GPIO), Analog (ADC), 1-Wire (DHT11) |
| PCB Size (per module) | Varies: approx. 32mm x 14mm to 45mm x 20mm |
| Package Contents | 9 sensor modules, no jumper wires |
What You Can Build With This
- Home security alarm with PIR motion and ultrasonic entry detection
- Indoor weather station using DHT11 temperature/humidity and LDR light level
- Gas leak alert system combining MQ2 sensor with a buzzer and relay
- Smart irrigation controller using rain sensor and soil moisture substitute
Compatibility
All modules operate at 5V logic and connect directly to Arduino Uno, Mega, Nano, or similar 5V boards. For 3.3V platforms like Raspberry Pi, use a level shifter on the signal lines to avoid damage. The DHT11 requires a 10k pull-up resistor on its data line, which is not included. Most modules draw under 20mA each, keeping total current well within USB power limits.
Wiring Notes
Each sensor has VCC (5V), GND, and one or more signal pins. Connect VCC to the 5V rail on your board, GND to common ground, and signal to a digital or analog input. For the HC-SR04 ultrasonic sensor, trigger and echo pins go to separate digital I/O. PIR output is 3.3V but safely read by 5V Arduino pins. IR obstacle and sound sensors output digital HIGH/LOW; LDR and MQ2 give analog voltages.
Why Buy from Compoden
Every component is sourced from verified suppliers and tested for compatibility before listing. We've spent 10 years building projects for makers, schools, and institutions across India. Ships from Bengaluru in 3-5 days. If defective on arrival, replace within 7 days.
Is this compatible with Arduino Uno?
Yes, all sensors run at 5V and can be directly wired to the Uno’s GPIO pins without extra components, except the DHT11 which needs a 10k pull-up resistor on its data line.
Do the sensors come with connecting wires?
No, this kit includes only the 9 sensor modules. You will need separate male-to-female jumper wires to interface them with a breadboard or microcontroller.
Can I use this kit with Raspberry Pi?
Yes, but you must use a 5V to 3.3V logic level converter for any digital sensor signals. The Pi’s GPIO pins are not 5V-tolerant and can be damaged if connected directly.
