Home › Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit
Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit - Compoden
In Stock

Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit

SKU: CDN-KIT-0077-CL Brand: Compoden Category: Electronics > Robotics & Motion > Project Kits
Rs. 650.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit — a beginner-level kit.

Sharpener Kit: Build a Timed Automatic Pencil Sharpener with Arduino Uno and DC Motor

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 1-2 hrs Skill: Motor control with timed activation

Watch a simple button press transform into a precise 3-second burst - exactly what you need to drive a gear-reduced sharpening drum. This kit turns that idea into a real circuit, introducing you to motor drivers, timing logic, and push-button inputs without any prior experience. Whether it's a classroom demo, a tinkering lab project, or just the thrill of making something useful, you'll build a smart sharpener that never overspins.

What You'll Build

You'll construct a push-button controlled automatic sharpener. Press the tactile button and the DC motor spins for a fixed 3-second window, turning a sharpening drum (you can repurpose a manual sharpener or attach a simple drum - the electronics are the core). Once you've laid out the breadboard and uploaded the code, you'll see how a real-world timing task works in robotics and automation.

What You'll Learn

  • Interface a DC motor with the L298N driver and Arduino Uno
  • Write Arduino code to trigger a timed output on a button press
  • Use a 9V battery to power a motor circuit safely
  • Read and debounce a tactile button to prevent false triggers

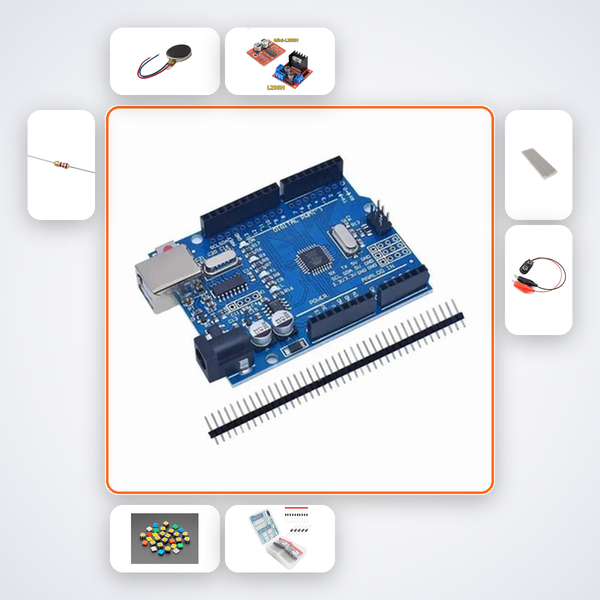

Kit Contents

Component Quantity
Arduino Uno R3 1
DC Motor 5V 1
L298N Driver 1
Tactile Button 1
1N4007 Diode 5
10kΩ Resistors 5
400-pt Breadboard 1
M-M Wires 15
9V Battery Snap 1

Who This Kit Is For

Good for CBSE students exploring automation through the ATL Tinkering Lab initiative, hobbyists tackling their first motor project, and B.Tech ECE/EEE freshers who want a quick hands-on intro to motor drivers. If you're preparing for a Smart India Hackathon prototype or a school science exhibition demo, this kit gives you a reliable timed-action module you can later modify for conveyors, feeders, or custom dispensers.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code on the box to access the AI companion that walks you through every wiring step and the Arduino sketch. You can also ping us on WhatsApp - a real human will jump in.

Does the kit include the sharpening drum?

The electronics are ready to drive any small 5V DC motor with a gear-reduced drum. A common manual pencil sharpener can be attached to the motor shaft, or you can 3D-print a drum. The kit gives you the timed control; the mechanical part is a fun customization activity.

Can I change the 3-second timing?

Absolutely. The Arduino code is open and commented. You can adjust the delay value in milliseconds to set any duration you need - 1 second, 10 seconds, or even make it run until a second button stops it.

Is any soldering or special tool needed?

None. Everything plugs into the breadboard with jumper wires. A small Phillips screwdriver to connect the motor to the L298N is the only tool you might need, and it's not soldering.

Button activates DC motor driving a gear-reduced sharpening drum for timed 3 seconds.

What's in this kit

Do you deliver across India?

Yes. We ship Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit across India including Delhi, Mumbai, Bangalore, Hyderabad, Chennai, and Pune. Orders ship in 3-7 days.

What payment options are available for Auto Pencil Sharpener with Arduino Uno - Timed Motor Control Kit?

We accept UPI, all major debit and credit cards, and Cash on Delivery (COD) available.

Built and shipped from Compoden, with UPI and cards, plus COD available.

Shipping Information

  • Prepaid Orders: ₹45 for orders up to ₹1,999, FREE shipping above ₹1,999
  • COD Orders: ₹45 shipping for orders up to ₹1,999, FREE shipping above ₹1,999. COD available.
  • Delivery Timeline: Dispatch in 3-7 days, delivery in 2-7 days depending on location

Returns & Warranty

  • 7-Day Return: Manufacturing defects only (approval required)
  • Warranty: 7 days from delivery
  • Non-Returnable: Batteries, consumables, cut wires, clearance items
