Hand-Cranked Music Box Kit with Arduino Uno + A3144 Hall Sensor

SKU: CDN-KIT-0094 Brand: Compoden Category: Electronics > Robotics & Motion > Project Kits
Rs. 440.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Build Your Own Hand-Cranked Music Box with Arduino – Musical Crank Organ Kit

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 2-3 hrs Skill: Sensor Interfacing & Musical Programming

Spin a hand crank and hear musical notes flow — each rotation of the crank is sensed by a Hall sensor, counted by an Arduino, and transformed into a tone from a passive buzzer. This kit turns a simple motion into a working musical instrument, teaching the core concepts of sensor input, signal processing, and real-time sound generation. Good for beginner makers who want to see, hear and play with electronics right away.

What You'll Build

You’ll assemble a compact organ box where every turn of the crank produces a musical note. As you spin faster or slower, the Arduino maps rotation speed to note frequency, letting you improvise melodies at your own pace. The final project is a hands-on music maker, part mechanical crank and part digital instrument, that shows how sensors and code create interactive gadgets.

What You'll Learn

  • How Hall effect sensors detect magnetic fields and count rotations without physical contact
  • Programming an Arduino Uno to read digital pulses and generate PWM audio signals for a passive buzzer
  • Translating rotation speed into musical intervals and mapping them to specific notes in code
  • Building a stable, reusable circuit on a breadboard using resistors and capacitors for debouncing and noise filtering

Kit Contents

Component Quantity
Arduino Uno R3 1
A3144 Hall Sensor 1
Passive Buzzer 1
10kΩ Resistors 5
100nF Caps 5
400-pt Breadboard 1
M-M Wires 15
9V Battery Snap 1

Who This Kit Is For

This kit suits students exploring sensor-based projects, ATL Tinkering Lab mentors running introductory Arduino workshops, and anyone wanting a hands-on activity. B.Tech ECE/EEE freshers at NITs or VIT find it a gentle sandbox to experiment with signal mapping before tackling heavier instruments. The crank-organ interplay also fits perfectly into school science exhibitions and hobbyist maker weekends.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code to access the AI companion trained on this exact Musical Crank Organ Kit. It offers real-time guidance, and you can message us on WhatsApp for personal help if needed.

Does this kit require soldering?

No soldering at all. Everything plugs into the breadboard with jumper wires, so the build is solder-free and the parts are reusable.

Can I create different tunes by changing the crank speed?

Yes, the code maps rotation speed to note frequency. Once the basic organ works, you can modify the mapping to play scales, simple songs, or even experimental sound effects.

Do I need prior electronics experience?

No. The step-by-step AI companion and clear breadboard layout make it friendly for absolute beginners, turning assembly into a guided play session.

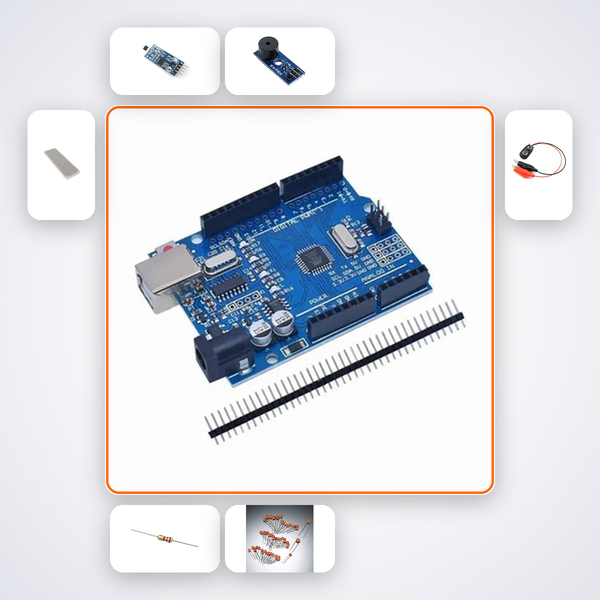

Hall sensor on a hand crank counts rotations and plays notes via passive buzzer at musical intervals.
