Servo Tilt Balance Beam Kit with Arduino Uno + MPU6050
Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts
Servo Tilt Balance Beam Kit with Arduino Uno + MPU6050 — a beginner-level kit.
Learn Tilt-Based Servo Control with Arduino Uno
Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.
Imagine an autonomous vehicle that instantly detects a rollover and counteracts to keep passengers safe. With this kit, you’ll build a balance beam that a servo actively keeps horizontal based on MPU6050 tilt readings – a visual introduction to the P-controllers used in real-world stability systems. Whether you're preparing for a school science exhibition or exploring robotics, this project brings vehicle dynamics to your workbench.
What You'll Build
You’ll assemble a sensor-controlled balance beam where an SG90 servo rotates a beam to stay level regardless of how you tilt the base. The MPU6050 accelerometer/gyroscope continuously reads angle and commands the servo via a proportional (P) controller – just like a vehicle’s electronic stability program counteracts skidding. When tilted beyond a threshold, the response simulates a crash detection alert, with visual feedback from LED indicators.
What You'll Learn
- Reading MPU6050 accelerometer and gyroscope data over I2C
- Implementing a proportional (P) control loop to maintain setpoint
- Driving a servo motor based on real-time sensor corrections
- Debugging sensor noise with hardware filtering (capacitors and resistors)
Kit Contents
| Component | Quantity |
|---|---|
| Arduino Uno R3 | 1 |
| MPU6050 | 1 |
| SG90 Servo | 1 |
| 4.7kΩ Resistors | 5 |
| 100nF Capacitors | 5 |
| 400-pt Breadboard | 1 |
| M-M Wires | 20 |
| 9V Battery Snap | 1 |
Who This Kit Is For
This kit is ideal for CBSE students exploring physics and control systems, ATL Tinkering Lab innovators, and young robotics enthusiasts in clubs across India. B.Tech first-year ECE/EEE students will also appreciate a hands-on demonstration of proportional control ahead of their lab curriculum. Homeschoolers and hobby makers looking for a weekend project with visual results will find it instantly rewarding.
Built and Backed by Compoden
Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.
What if I get stuck during the build?
Scan the QR code for the AI companion trained on this balance beam project – it will guide step by step. You can also send a WhatsApp message for human backup.
What if my servo jitters or overshoots?
The AI companion will help you tune the proportional gain and show you how the 100nF capacitors reduce noise on the MPU6050’s power line, ensuring smooth movement.
Is this kit suitable for a Smart India Hackathon junior track?
Absolutely – it provides a clear demonstration of closed-loop control and can be extended to a full vehicle stability demo with additional sensors.
Do I need to know coding?
All code is provided and explained line-by-line in the companion guide. Beginners can modify variables to see how the balance changes without writing from scratch.
Automotive Safety — MPU6050 tilt drives servo to keep a balance beam horizontal using P-controller. Visual intro to control.
What's in this kit

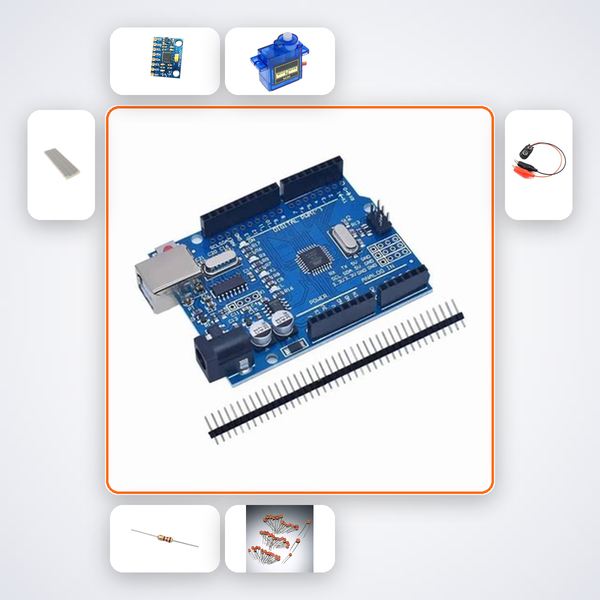

- Arduino Uno R3
- MPU6050
- SG90 Servo
- 4.7kΩ Resistors x5
- 100nF Caps x5
- 400-pt Breadboard
- M-M Wires x20
- 9V Battery Snap
