Arduino Mega Balancing Payload Platform - Keep Cargo Level on Rough Ground

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-5 days.

Picture a four-wheeled robot traversing bumpy corridors, outdoor paths, or competition arenas while a tray of fragile components or a camera mount stays perfectly horizontal - no mechanical gimbal needed. This kit challenges you to build an active payload stabilization system using the MPU6050's accelerometer and gyroscope. The Arduino Mega continuously reads tilt angles, commands two servos to counter chassis motion, and keeps your cargo level even when the wheels hit potholes. Perfect for engineering students exploring dynamics, mechatronics, or advanced hackathon challenges where real-time balance is a differentiator.

What You'll Build

A 4WD robot with an actively stabilized top deck. The MPU6050 feeds pitch and roll angles to the Arduino, which runs a complementary filter and PID controller to drive two SG90 servos mounted in a counter-tilt mechanism. You'll drive over obstacles while the payload - a drink, an electronics sample, or a small camera - remains flat. The chassis houses 18650 cells, LM2596 buck converter, and dual L298N motor drivers, giving you full control over locomotion and leveling in one platform.

What You'll Learn

• Implement a complementary filter to fuse MPU6050 accelerometer and gyroscope data for accurate tilt angles
• Tune PID or cascaded feedback loops to drive servo stabilization in real time
• Design a robust power system with 18650 cells, buck converter, and noise-filtering capacitors
• Coordinate 4WD motion with active balancing - motor driver integration and kinematics

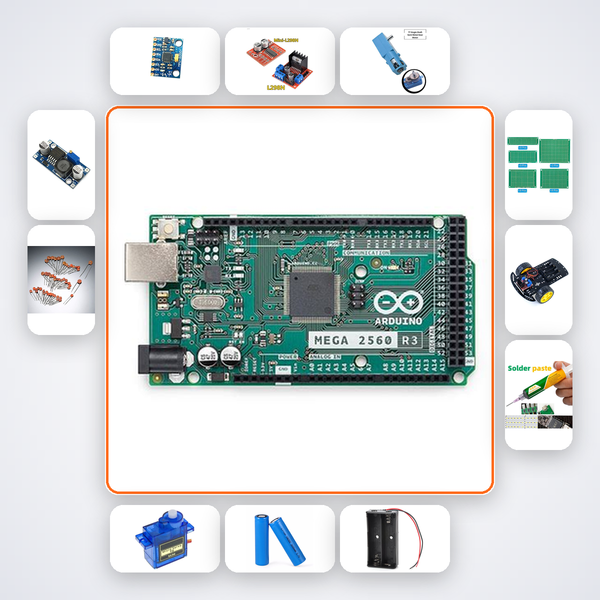

Kit Contents

Why Buy This Kit Instead of Sourcing Parts Separately

Who This Kit Is For

B.Tech ECE, EEE, or Mechatronics students who need a capstone project demonstrating dynamic control and sensor fusion. Smart India Hackathon participants building assistive robots or agritech payload carriers. ATL Tinkering Lab mentors guiding an advanced robotics module at IIT, NIT, VIT, or BITS campuses - anywhere a precision-stabilized mobile platform wins presentations and scores.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project - accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

Choose your assembly option:

• Soldering Kit - 25W soldering iron, 60/40 solder wire, flux, and small perfboard for permanent assembly.
• Breadboard Combo - 800-point full-size breadboard with 65-piece jumper wire pack for solderless prototyping.
