Arduino Sensor Shield V4.0 Expansion Board for Uno - Easy Prototyping
Arduino Sensor Shield V4.0 – Expand Your Uno with Easy Sensor Connections

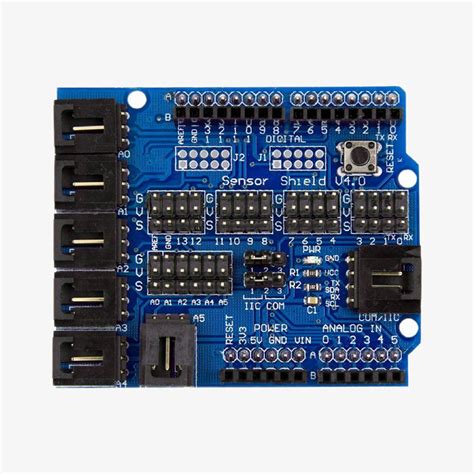

The Arduino Sensor Shield V4.0 is an expansion board designed to stack directly onto an Arduino Uno. It breaks out all I/O pins into organized 3-pin headers, enabling quick and solderless connections for sensors, servos, and modules. Ideal for rapid prototyping, it simplifies wiring and reduces clutter in your projects.
Key Specifications
| Specification | Value |
|---|---|
| Input Voltage | 5V DC (via Arduino Uno) |
| Digital I/O Pins | 14 (0-13) broken out to 3-pin headers |
| Analog Input Pins | 6 (A0-A5) broken out to 3-pin headers |
| Communication Interfaces | UART, I2C, SPI (via dedicated headers) |
| Servo Headers | 2 dedicated 3-pin servo ports |
| Additional Features | Bluetooth/APC220 module interface, power LED, reset button |
| Dimensions | 55mm x 53mm (approx.) |
What You Can Build With This
- Obstacle-avoiding robot with ultrasonic and IR sensors
- Weather station measuring temperature, humidity, and pressure
- Home automation system with relays and motion detectors
- Line-following robot for beginner robotics competitions
Compatibility
This shield is designed for the Arduino Uno R3 form factor. It can also work with Arduino Mega 2560 if aligned correctly, but check pin mapping for compatibility. All pins operate at 5V logic; use level shifters for 3.3V sensors if needed. Common pairings include HC-SR04 ultrasonic sensors, DHT11/DHT22 temperature sensors, and servo motors.
Wiring Notes
Simply align the male headers with your Arduino Uno and press firmly. All signal, power, and ground connections are pre-routed to the 3-pin headers; no additional wiring is needed for most sensors. If using high-current loads like multiple servos, power them through the shield’s separate power input header rather than the Arduino’s 5V pin.
