Motorised Pencil Sharpener Kit with Arduino Uno + L298N Driver

SKU: CDN-KIT-0093 Brand: Compoden Category: Electronics > Robotics & Motion > Project Kits
Rs. 930.00
Inclusive of all taxes
Free Shipping on prepaid orders above ₹1,999
Ships in 3-7 days
7-Day Warranty on manufacturing defects
GST invoice 18% GST included · HSN 90230090
Pay with UPI Cards Netbanking Cash on Delivery
Need 10+ units? Contact us for bulk pricing
100% Genuine Products
Expert Technical Support
Quality Tested
Soldr.ai Ask about this product

Open this project in the Soldr app → What is Soldr.ai → wiring, code and test steps for exactly these parts

Motorised Pencil Sharpener Kit with Arduino Uno + L298N Driver — a beginner-level kit.

Build a Motorised Pencil Sharpener with Arduino & a 3-Second Timer

Every part needed, pre-tested for compatibility, with an AI build companion trained on this exact project. Shipped from Bengaluru in 3-7 days.

Difficulty: Beginner Build Time: 1-2 hrs Skill: Motor control using Arduino & L298N driver

Press a tactile button and a DC motor spins for exactly 3 seconds — then stops cleanly. That’s the core of every electric pencil sharpener, and this kit lets makers build that exact timing circuit with an Arduino Uno, an L298N motor driver, and basic components. No manual cranking, no guesswork: just one button press for a perfectly timed sharpening burst. It’s a gentle introduction to robotics, motor control, and real-world programming logic.

What You'll Build

You’ll assemble a complete motorised sharpener timer on a breadboard: connect the Arduino, driver, motor, and button, then upload code that reads the button press and runs the motor for a preset 3-second window. The motor shaft acts as the drive hub for a sharpening drum — you can attach a small wheel or a foam cylinder to visualise how the mechanism would work. When you press the button, the motor engages, holds steady for three seconds, and disengages, ready for the next pencil.

What You'll Learn

  • Interface a DC motor with Arduino using an L298N motor driver and understand H‑bridge logic
  • Read a tactile button input and implement software debouncing for stable triggering
  • Write a timer function that runs the motor for exactly 3 seconds and then stops it immediately
  • Use diodes and resistors correctly for circuit protection and pull‑up/pull‑down configurations

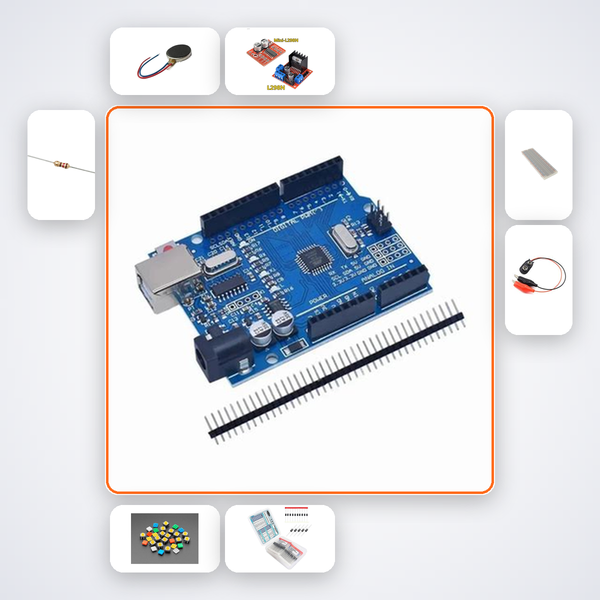

Kit Contents

Component Quantity
Arduino Uno R3 1
DC Motor 5V 1
L298N Driver 1
Tactile Button 1
1N4007 Diode 5
10kΩ Resistors 5
400-pt Breadboard 1
M-M Wires 15
9V Battery Snap 1

Who This Kit Is For

Good for CBSE students exploring microcontroller projects in physics or computer science, B.Tech ECE/EEE first-year learners tackling their first embedded motor control assignment, and ATL Tinkering Lab innovators. It also fits perfectly into Smart India Hackathon junior themes and introductory workshops at IIT, NIT, VIT, or BITS campuses.

Built and Backed by Compoden

Every Compoden kit ships with an AI build companion trained on this exact project — accessible via a QR code on the box, with WhatsApp and email backup. We've spent 10 years building projects for makers, schools, and institutions across India. If a part fails because of a manufacturing defect, replace it free within 7 days.

What if I get stuck during the build?

Scan the QR code inside the box to launch the AI companion instantly. It walks you through wiring, code, and troubleshooting. You can also send a photo via WhatsApp and our team will guide you back on track.

Can I change the 3‑second timer to a different duration?

Absolutely. The Arduino sketch is open and commented, so you can modify the delay value in the code to any length you need – for testing, demonstrations, or even a longer sharpening cycle.

Does this kit include a real pencil sharpener blade?

No. The kit focuses on the motor control electronics. You can attach a small wheel or foam disc to the motor shaft to simulate the sharpening drum. No cutting parts are included, keeping the project safe for builders.

Is soldering required?

Not at all. All connections are made on the included 400‑point breadboard using male‑to‑male jumper wires. The entire circuit can be assembled and modified without any soldering.

Button activates DC motor driving a gear-reduced sharpening drum for timed 3 seconds.
